Quality Cruising, Real Community

The Ranger Tugs Difference

When we say “you’re not just buying a boat, you’re joining our family” we really mean it.

This is because Ranger Tugs was built upon the idea of family, with generations of northwest boatbuilders, designers and craftsmen comprising our leadership. We consistently innovate and push to deliver the greatest value because it’s built into our DNA.

The Livingston Story

The executive team at Ranger Tugs represents a combined total of over 200 years of boating experience. Fluid Motion President, John Livingston has been kicking around fiberglass boats since before he could walk. His father and business partner, Dave Livingston built his first boat when he was 15 years old using plans he found in Popular Mechanics magazine. Not long after building the popular mechanics dinghy, Dave built his first hydroplane which he raced AND skied behind. During those early years, it was a regular occurrence for the neighbors to see Dave hauling wood back from the lumber store on his bike until he was finally old enough to get his driver’s license.

After completing four years of service in the Navy, Dave designed and built what would soon become his first commercially successful vessel, his iconic design bearing the family name, the Livingston dinghy. After several successful years at the helm of Livingston, Dave eventually sold the company to Reinell. Over the years, he has created, modified or consulted for many boat manufacturers including Bayliner, Reinell, Wellcraft, Regal, Larson, and many more.

Dave’s steady hand at the drafting table and experienced eye
for design trends has helped propel Ranger Tugs to its current
level of success. Dave works tirelessly designing new models for Ranger Tugs and is continuously improving manufacturing techniques and facilities.

Quality is in Our DNA

A dependable build begins with quality materials. As a proud member of the American Boatbuilding Association, we have access to the highest quality materials in the industry.

When it comes to construction, a fiberglass boat is built from the outside in. The first step to form the hull begins with a high-quality HD gelcoat featuring best in-class UV resistance. We then follow up with a vinyl ester barrier coat which keeps the moisture out and provides industry leading blister protection. Woven roving and continuous glass fibers are then hand-laid to create a rock-solid running surface built handle the toughest marine conditions. To create a hull that is both strong and lightweight, we utilize custom fabricated gimbaled hull molds which allow the resin to be evenly distributed and achieve the perfect glass to resin ratio.

Once the hull is formed, it is permanently bonded with our 100% fiberglass stringer system which becomes the rigid backbone of the boat. Foam is then injected into key areas of the stringer system to reduce noise while underway.

With the stringer bonded to the hull, the cabin can be built upon this solid foundation. Next, our skilled carpenters and technicians install the interior components, electrical systems, plumbing, cabinetry and more to create the fully furnished cabin. Throughout the interior, every Ranger Tug features high quality marine-grade materials such as Sunbrella fabrics and premium wood finishes.

Factory Delivery Experience

Joining our family is a big deal, and that’s why
we offer our Factory Delivery Experience.

Our Factory Delivery Experience includes two distinct days of one-on-one training on your new boat. The first day is spent at the dock with a factory customer service representative, covering each and every system onboard the boat. The second day is spent on the water with our factory delivery captain learning how to operate and handle your new Ranger Tug. Our job isn’t complete until you’re safely enjoying your new boat on the water.

The Ranger Tugs Lineup

R-23

R-25

R-27

R-29 CB

R-29 S

R-31 CB

R-31 S

R-43 CB

R-43 S

Find Out More

Contact Ranger Tugs

47 37th st NE
Auburn, WA, 98002

Phone: (253) 839-5213

Fax: (253) 839-5218

Build Your Boat

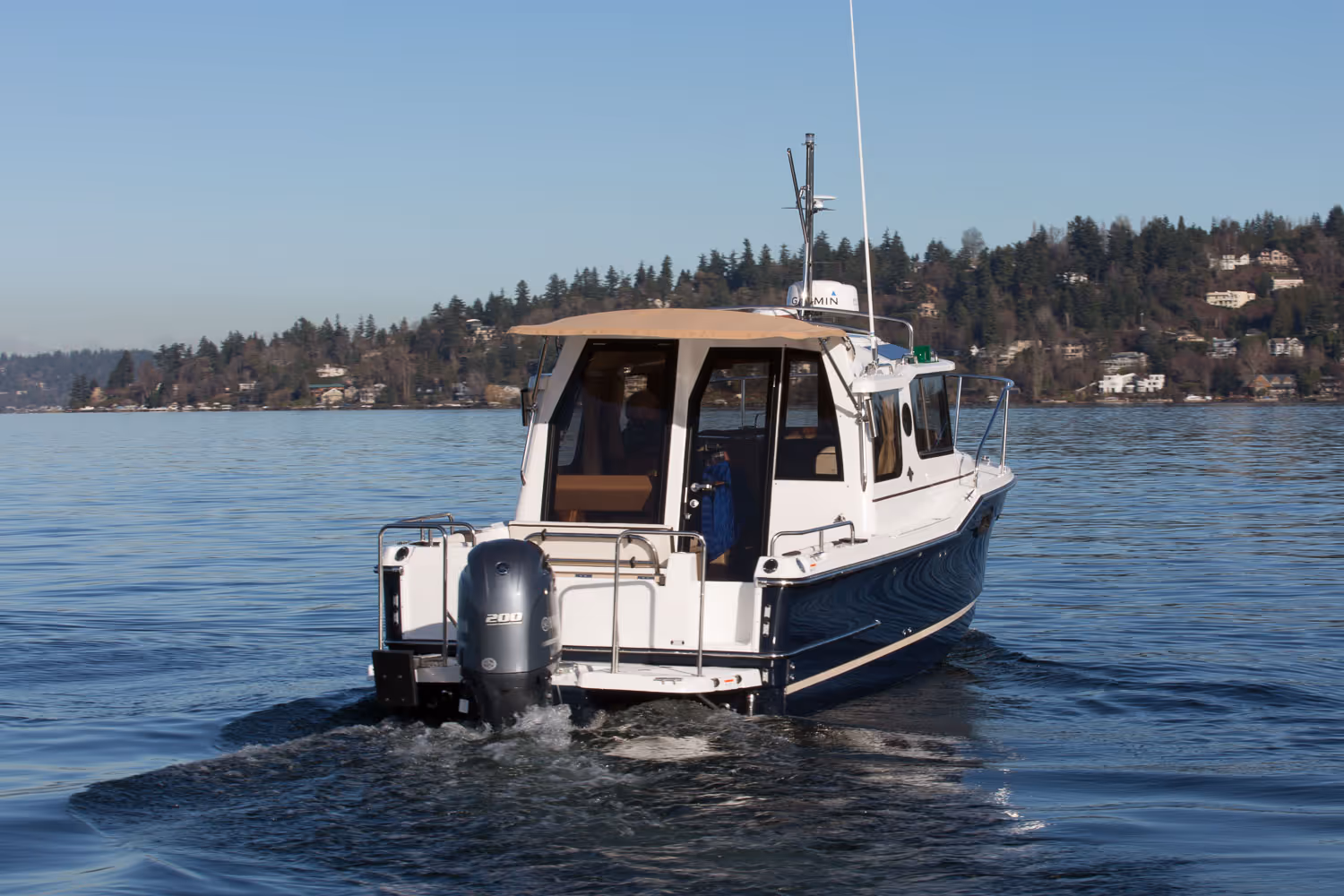

R-23

Specifications

  • Engine: Yamaha F200 outboard
  • LOA (motor down): 28' 5" 8.66 m
  • LOA (motor up):: 29' 8" 9.04 m
  • Draft (motor down) 30" 0.76 m
  • Draft (motor up): 19" 0.48 m
  • Beam: 8' 6" 2.59 m
  • Bridge clearance (mast down): 8' 6" 2.59 m
  • Height on trailer (mast down w/ radar, estimated): 11' 6" 3.51 m
  • Height on trailer (mast down w/o radar, estimated): 10' 10" 3.3 m
  • Length on trailer (motor down, estimated): 34' 10" 10.62 m
  • Length on trailer (motor up, estimated): 36' 10.97 m
  • Fuel capacity: 80 US gal 302.8 L
  • Water capacity: 22 US gal 83.3 L
  • Waste capacity: 11 US gal 41.6 L
  • Weight, dry: 6,000 lbs 2,722 kg

The first thing you will notice when looking at the popular Ranger Tugs R-23 is the dramatic, curved windshield and visor, accompanied by several overhead skylights. There is no shortage of light or visibility onboard the R-23, which incorporates four opening roof hatches, sliding side windows, and an opening glass bulkhead, providing an open and airy feeling inside and out. Opening portlights also allow for a nice cross breeze in the cabin. The R-23 is powered by a 200 HP Yamaha outboard.

The forward cabin on the R-23 has plenty of room for sitting around the teak table, separate sleeping for two or sleeping two together with the filler-cushion. The mid berth is great for kids or storage, and the dinette converts to a sleeper as the third berth. The well-appointed galley on the R-23 is standard with refrigerator/freezer, cooktop, and microwave. The forward head includes a marine toilet with holding tank, shower, sink, and mirror. The Ranger Tugs R-23 comes standard with a 9” Garmin GPS chartplotter with sonar and is available with optional xHD radar. VHF to stay in touch, illuminated compass, cabin night light, cockpit and exterior side trail lighting, and our built-in safety trailering lights (brake, turn, and reverse) are all standard equipment making the R-23 ready to cruise. The cockpit on the R-23 is built to fish and ready to entertain with standard rod holders, optional downrigger pads & outlets, and a folding double seat.

The R-23 is perfect for overnighting or extended cruises. It incorporates many of the same amenities as a larger cruising yacht that until now were not offered on a boat of her size and price point. Whether you are new to boating or a seasoned captain, the R-23 is the perfect boat for your next adventure. Get on the water today in the Ranger Tugs R-23!

Model Features

Cabin Atrium Skylights
and Hatches

The cabin is open and bright, featuring overhead atrium skylights with heat reflective tint and opening rooftop hatches.

Laminar Flow Interrupters

The R-23 is equipped with our Laminar Flow Interrupter technology for smooth, positive cornering performance.

Full Galley

An electric/alcohol stove top, refrigerator/freezer, microwave, hot and cold galley sink, cutting board, and ample storage & counter space makes food prep a breeze.

Multi-use Seating

The aft bulkhead window opens, and the dinette seat transforms to create a rear facing seat. Combined with the L-lounge, the R-23 boasts cockpit seating for 5 adults.

9” Garmin Chartplotter

Navigation is fun and accurate with a 9” Garmin Chartplotter with sonar. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and much more.

Reliable Yamaha
Outboard Power

The R-23 is powered by a Yamaha F200, which delivers outstanding performance and efficiency. A multifunction LCD displays key information such as RPMs and fuel flow.

Performance

  • 200 HP Yamaha F200 outboard
  • Electric trim tabs
  • Laminar flow interrupters
  • Bow Thruster
  • Trailerable - 8’6” beam

Accommodations & Interior Comfort

  • Atrium skylights
  • Cabin drink holders, 4
  • Curtains for privacy
  • Dinette (seats 4) converts to bed
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Kicker stereo system (multi-zone)
  • LED lighting
  • Marine toilet w/ holding tank, pump out
  • Midship berth
  • Opening portlights, 2
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress

Deck Features

  • Anchor package, 11 lb, 50’ chain, 150’ line
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 2
  • Sport racks, stainless steel
  • Swimming ladder, stainless steel
  • Swim Step
  • Windlass, bow and helm controls

Cockpit

  • Cockpit cover, soft-top
  • Cockpit drink holders, 2
  • Cockpit seating, 5+
  • Opening glass bulkhead w/ reversible seat
  • Transom entry door for boarding

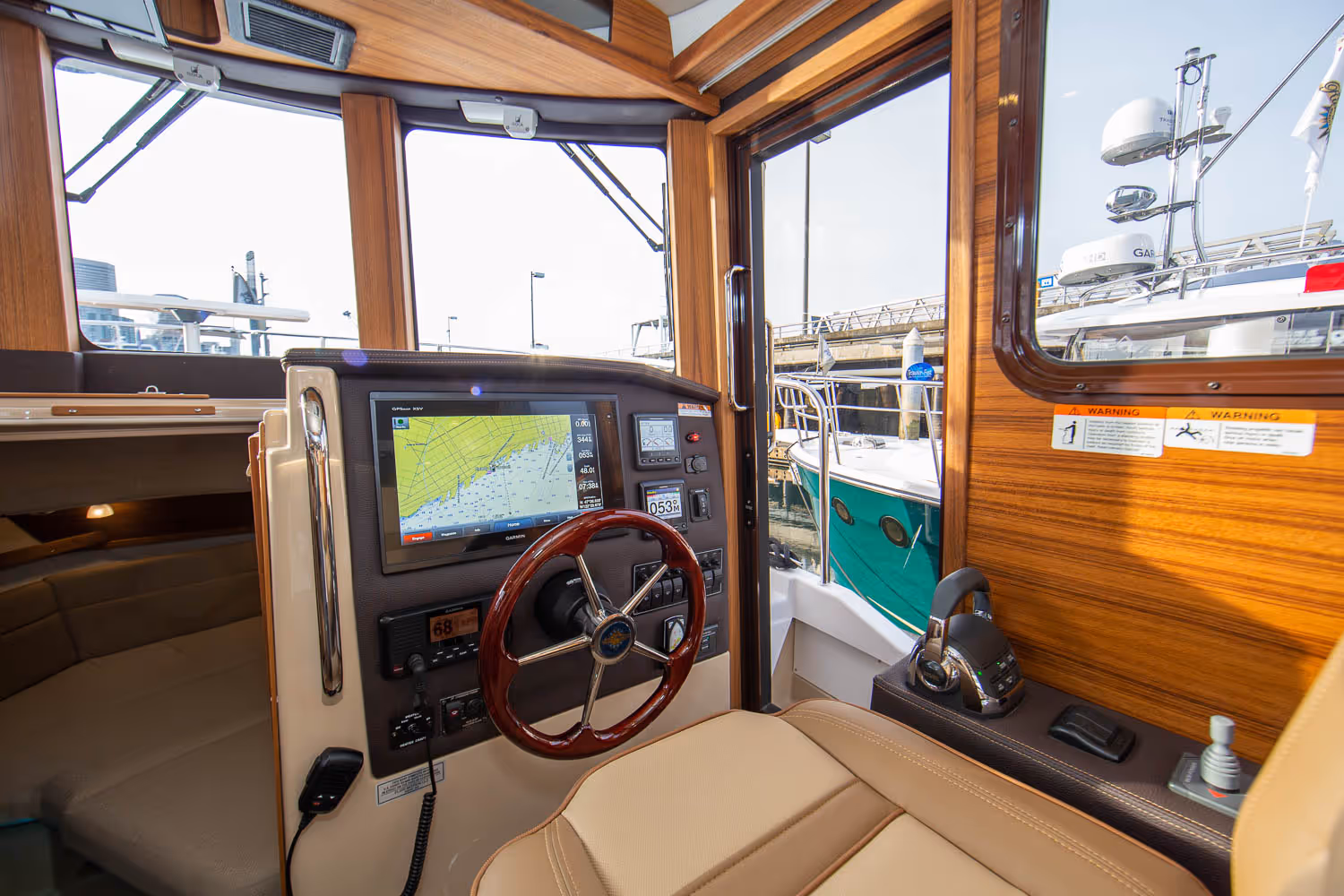

Helm

  • Color engine display
  • Digital fuel flow data
  • 9" Garmin navigation system w/ GPS and sonar
  • Helm drink holders, 2
  • Helm seat, bolstered
  • USB charging ports
  • Windshield wipers, 2

Galley

  • Cutting board
  • Galley cabinets, 2
  • Galley drawers, 1
  • Microwave
  • Refrigerator/freezer
  • Sink with hot and cold water, with pull-out rinse faucet
  • Stove top, electric/alcohol

Mechanical & Electrical

  • AC electrical panel
  • Batteries
  • Battery charger
  • DC electrical panel
  • Galvanic isolator
  • Inverter
  • Smart Plug Inlet and 30amp Shorepower Cord

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Integrated trailer lights
  • Navigation lights
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options

  • Solar panel, 175w with controller
  • Autopilot w/ remote
  • Aft cockpit sun shade with sunset shade
  • Aux./Kicker motor bracket
  • Auxiliary Motor Package: 9.9, electric steering with wireless remote
  • Macerator Discharge
  • Downrigger Plugs & Plates
  • Underwater lights
  • Air Conditioning / Reverse cycle heat (dockside only unless equipped with Lithium (LiFePO4) battery upgrade)
  • Lithium (LiFePO4) Battery Upgrade: enables inverter powered air conditioning / rev. cycle heat
  • Garmin xHD Radar
  • Factory Delivery Experience
  • Safety kit, fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Hull color upgrade
  • Aluminum tandem axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

R-25

Specifications

  • Engine: Yamaha F250 outboard engine
  • LOA (motor down): 28' 5" 8.66 m
  • LOA (motor up): 29' 8" 9.04 m
  • Draft (motor down): 34" 0.86 m
  • Draft (motor up): 19" 0.48 m
  • Beam: 8' 6" 2.59 m
  • Bridge clearance (mast down, w/ radar): 8' 6" 2.59 m
  • Height on trailer (mast down, w/ radar, estimated): 11' 10" 3.61 m
  • Height on trailer (mast down, w/o radar, estimated): 11' 2" 3.4 m
  • Length on trailer (motor down, estimated): 34' 6" 10.52 m
  • Length on trailer (motor up, estimated): 36' 10.97 m
  • Fuel capacity: 99 US gal 374.8 L
  • Water capacity: 34 US gal 128.7 L
  • Waste capacity: 14 US gal 53 L
  • Weight, dry: 6,500 lbs 2,949 kg

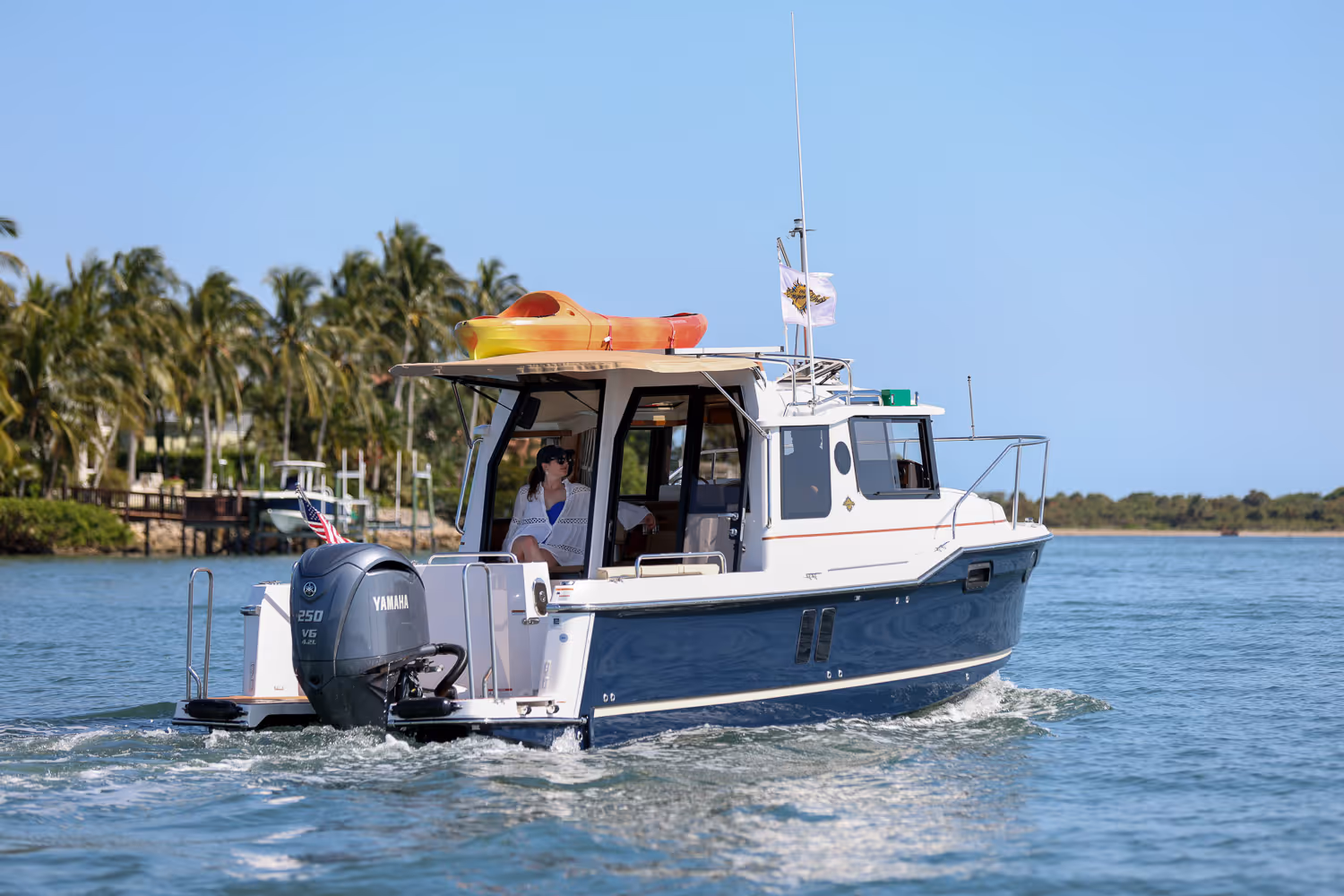

The R-25 is a feature-packed cruiser designed for comfort, ease of use, and FUN! You’ll find the Ranger Tugs DNA built into every facet of the R-25’s thoughtful design.

Right away you’ll notice one of the most innovative features of the R-25, our Clear-Path swim platform. The extended swim platform wraps around the outboard to present a clear walkway free of all engine rigging, which opens a whole new world of fishing, cruising, and water-sports opportunities. This exciting new design features heavy duty handrails and allows you to safely and easily board a dinghy, net a fish, step to or from a low dock (important for pets), and med-tie without fear of damaging your outboard and having to leap to the dock.

The main salon on the R-25 is light and bright, making it a perfect spot to relax or entertain. The dinette seats four or converts to a bed for two. The forward stateroom is private and comfortable featuring a large bed, opening hatches for airflow, reading lights, and a TV. The R-25 features a fully enclosed head equipped with an electric marine toilet, sink and shower. There’s even a spacious
quarter berth with a removable mattress that can be used to accommodate guests/kids or for expanded storage. An electric/alcohol stove top, refrigerator/freezer combo, microwave, and sink with hot and cold water, make food prep fun and easy.

The easily trailerable Ranger Tugs R-25 is a fantastic boat for cruising, fishing, and fun on the water. The private head, extended swim platform, multiple sleeping areas, and full galley give you everything you need to get away from the dock and spend some serious quality time with (or without) your friends and family.

Model Features

Clear Path Swim Platform

A revolution in usability and safety, this new area features 20 sq. ft. of non-skid decking for fishing, swimming, dock or dinghy access and more.

Laminar Flow Interrupters

The R-25 is equipped with our Laminar Flow Interrupters for smooth, positive cornering performance.

Full Galley

An electric/alcohol stove top, refrigerator/freezer, microwave, hot and cold galley sink, cutting board, and ample storage & counter space makes food prep a breeze.

Multi-use Seating

The aft bulkhead window opens, and the dinette seat transforms to create a rear facing seat. Combined with the L-lounge, the R-25 boasts cockpit seating for 5 adults.

12” Garmin Chartplotter

Navigation is fun and accurate with a 12” Garmin Chartplotter with sonar. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and much more.

Solar Panel

The included solar panel helps to keep your batteries charged while you’re boating off-grid. Now you can go further and stay longer without
the need for shore power or a generator.

Performance

  • 250 HP Yamaha F250 outboard, electric steering (DES)
  • Electric trim tabs
  • Laminar flow interrupters
  • Bow thruster
  • Trailerable - 8’6” beam

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning)
  • Atrium skylights
  • Cabin drink holders, 5
  • Curtains for privacy
  • Dinette (seats 4) converts to bed
  • Fully enclosed head
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Kicker stereo system (multi-zone)
  • LED lighting
  • Electric marine toilet w/ holding tank, pump out
  • Midship berth
  • Opening portlights, 2
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in stateroom

Deck Features

  • Anchor package, 16.5 lb, 50’ chain, 150’ line
  • Clear Path engine rigging
  • Clear Path swim step
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 3
  • Sport racks, stainless steel
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass

Cockpit

  • Cockpit cover, soft-top
  • Cockpit seating, 5+
  • Downrigger plugs and pads
  • Opening glass bulkhead w/ reversible seat
  • Transom entry door for boarding

Helm

  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single-lever
  • 12" Garmin navigation system w/ GPS and sonar
  • Helm drink holders, 2
  • Helm seat, bolstered
  • USB charging ports
  • Windshield wipers, 2

Galley

  • Cutting board
  • Galley cabinets, 2
  • Galley drawers, 1
  • Microwave
  • Pull-out rinse faucet
  • Refrigerator/freezer
  • Sink with hot and cold water, with pull-out rinse faucet
  • Stove top, electric/alcohol

Mechanical & Electrical

  • AC electrical panel
  • Batteries
  • Battery charger
  • DC electrical panel
  • Galvanic isolator
  • Inverter
  • Lithium (LiFePO4) house batteries
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Integrated trailer lights
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jacket, boat hook
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aft cockpit sun shade with sunset shade
  • Garmin xHD radar
  • Autopilot with remote
  • Electric Grill
  • Auxiliary motor bracket
  • Auxiliary Motor Package: 9.9, electric steering with wireless remote
  • Factory Delivery Experience
  • Hull color upgrade
  • Dinghy Lift w/ 260 RIB inflatable
  • Aluminum tandem axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

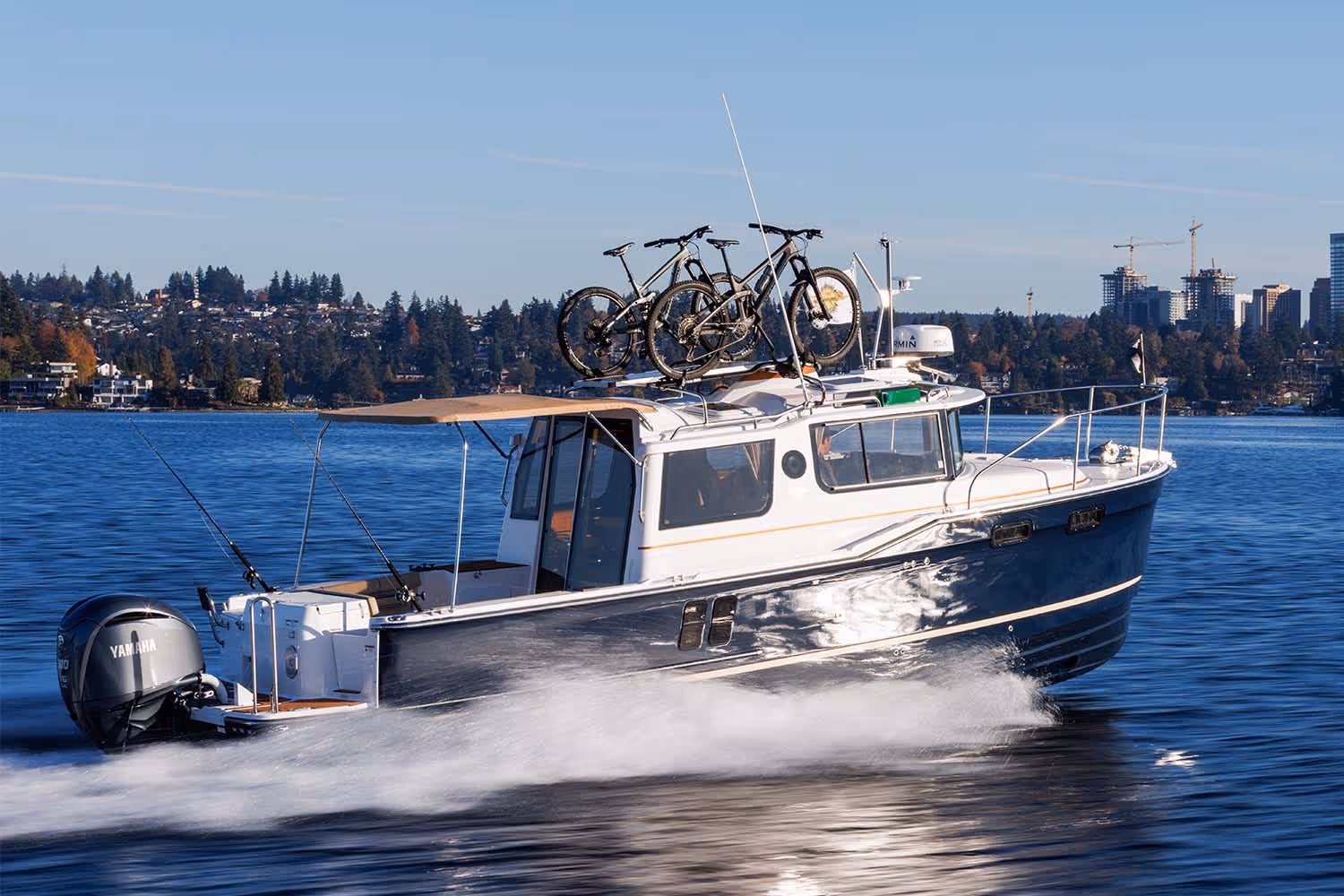

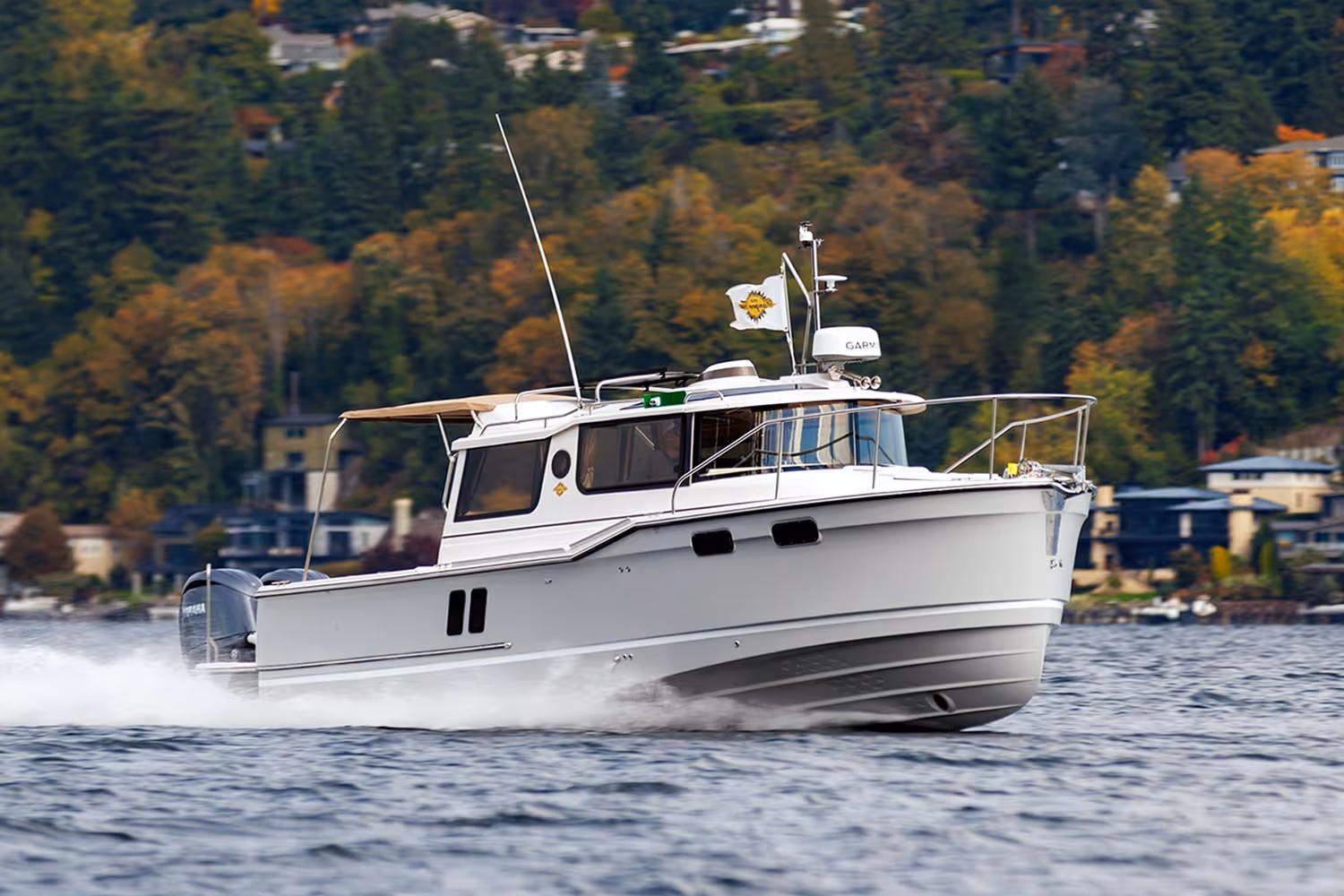

R-27

Specifications

  • Engine: Yamaha F300 outboard engine
  • LOA (motor down): 31' 7" 9.62 m
  • LOA (motor up): 33' 4" 10.16 m
  • Draft (motor down): 34" 0.86 m
  • Draft (motor up): 19" 0.48 m
  • Beam: 8' 6" 2.59 m
  • Bridge clearance (mast down): 8' 6" 2.59 m
  • Height on trailer (mast down w/ radar, estimated): 11' 10" 3.61 m
  • LOA on trailer (motor down): 38' 9" 11.81 m
  • LOA on trailer (motor up): 39' 9" 12.12 m
  • Fuel capacity: 150 US gal 567.8 L
  • Water capacity: 40 US gal 151.4 L
  • Waste capacity: 30 US gal 113.6 L
  • Weight, dry: 7,700 lbs 3,493 kg

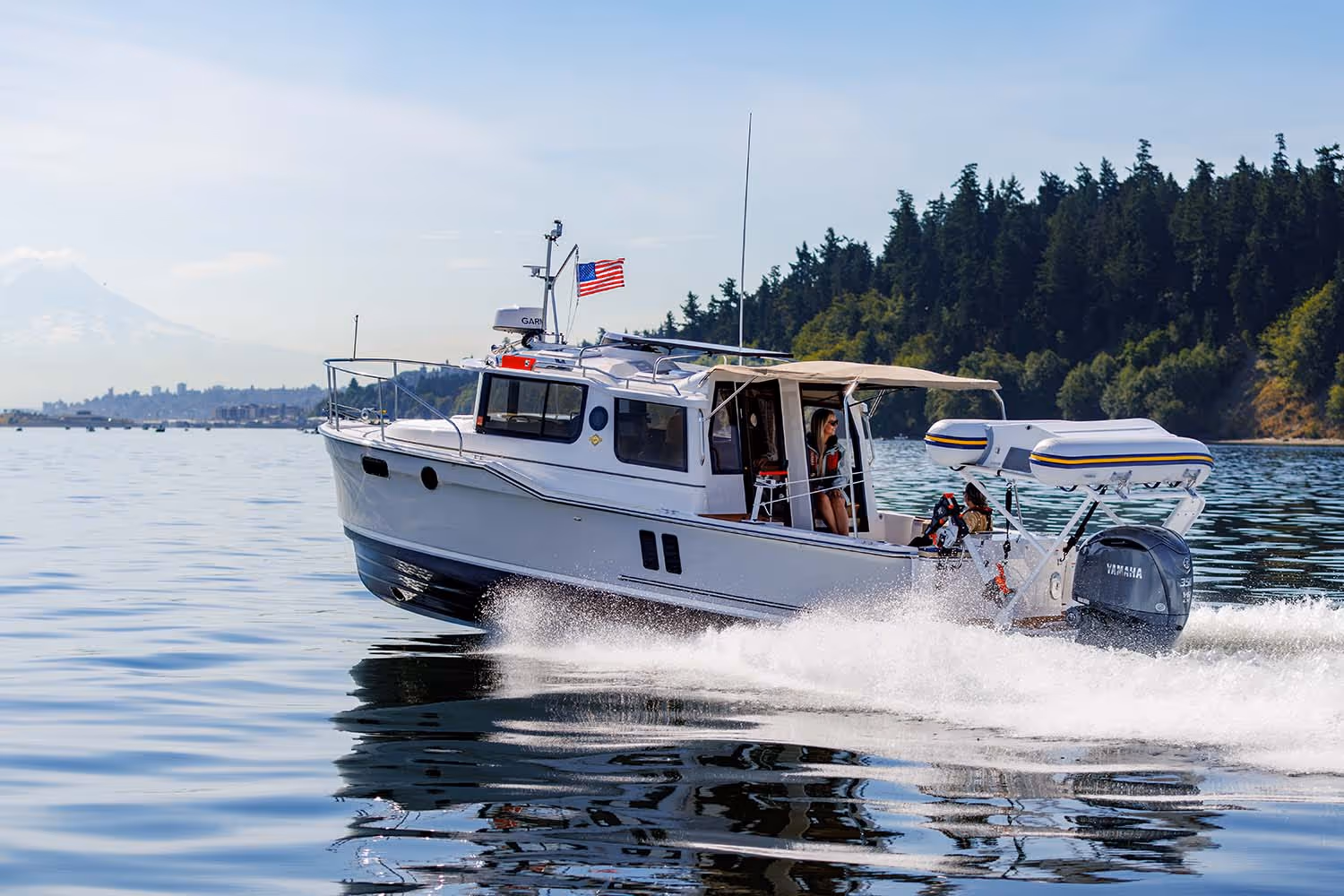

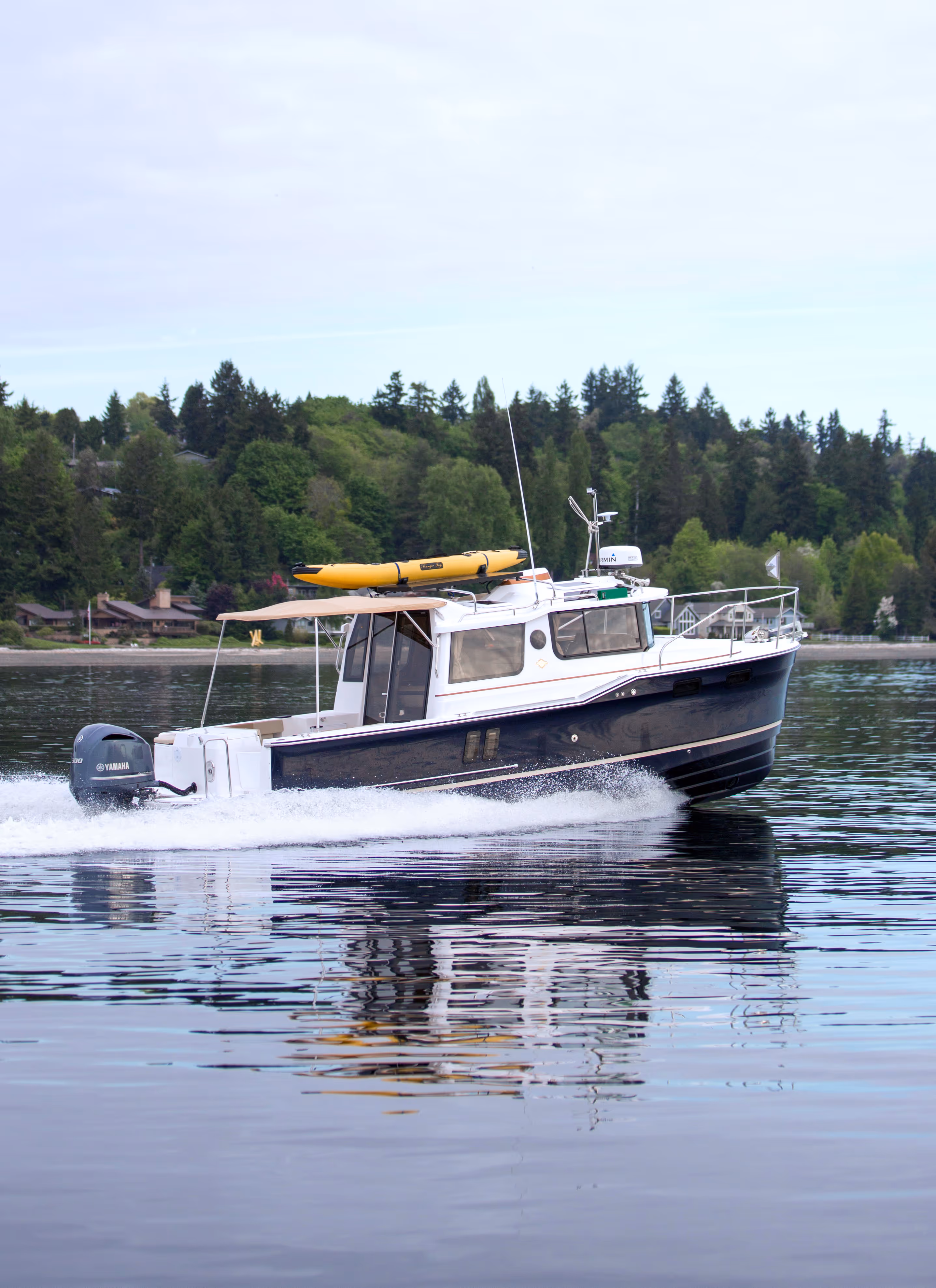

Cruising without compromise is the name of the game for the R-27 from Ranger Tugs. Straight from the factory, your new R-27 will be outfitted to cruise, fish, and play in comfort and style. Powered by the efficient and popular Yamaha F350 outboard motor, the new R-27 doesn’t waste time delivering you and your family to your next adventure. Enjoy peace of mind knowing that the included 12” Garmin chartplotter will guide you safely on your passage and that when you arrive, the bow thruster will make docking a non-event.

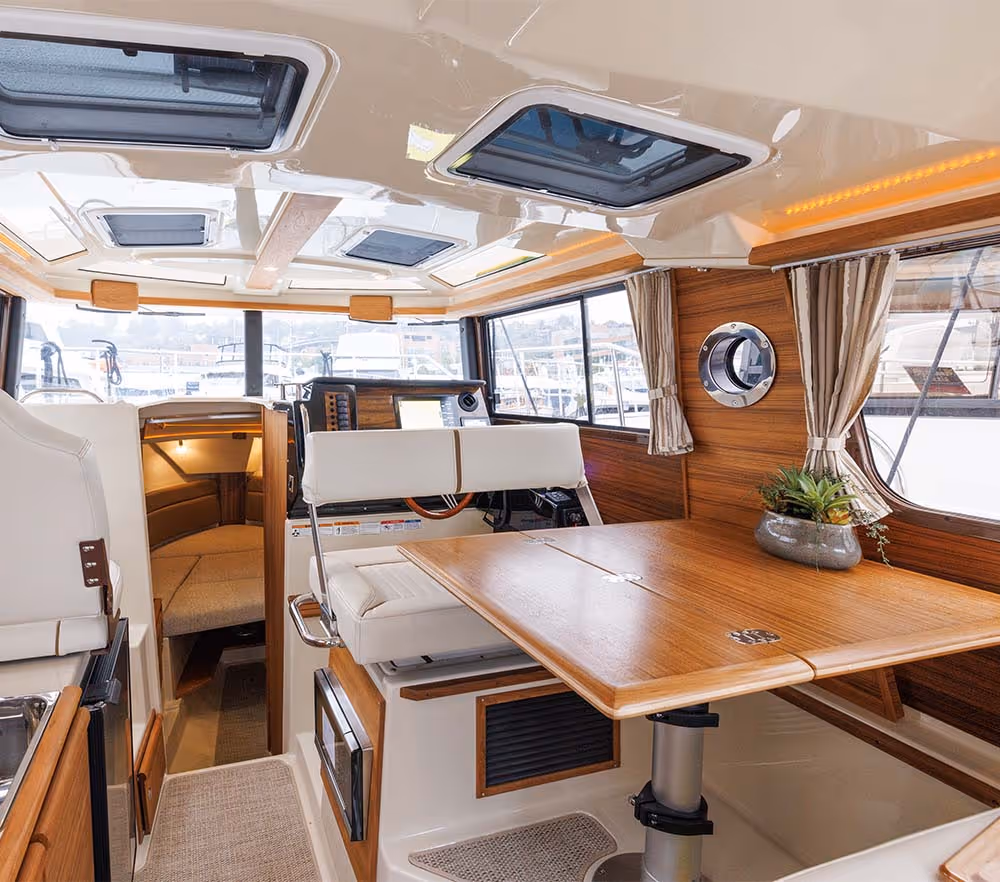

The curved front windshield and overhead glass atrium provide beautiful 360 degree views and generous light throughout the salon. Open the aft glass bulkhead in tandem with any of the hatches, windows, or port lights to deliver a fresh breeze throughout the cabin. Chefs will be delighted to cook in the full galley complete with a propane stove and oven with broiler, or to simply grill on the removable electric Kenyon grill. When taking in a gorgeous sunset, you and your guests can enjoy the view from the spacious cockpit or from the new double lounge seat on the bow of the R-27.

The R-27 from Ranger Tugs is designed and built to offer maximum usability, value, and FUN. When you buy a Ranger Tug you’re not just buying a boat, you’re joining our family.

Model Features

Garmin Navigation Package with Radar

A full navigation package from Garmin including a 12” GPS chartplotter with sonar and xHD radar is standard equipment on the R-27. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and much more.

Cabin Atrium Skylights
and Hatches

The cabin is open and bright, featuring overhead atrium skylights with heat reflective tint and opening rooftop hatches.

Full Galley

The R-27’s full galley is a chef’s dream, featuring a propane stove and oven with broiler, stainless sink with hot/cold water, cutting board, ample storage, refrigerator/freezer combo, and microwave.

Solar Panel

The included solar panel helps to keep your batteries charged while you’re boating off-grid. Now you can go further and stay longer without the need for shore power or a generator.

Laminar Flow Interrupters

The R-27 is equipped with our Laminar Flow Interrupters for smooth, positive cornering performance.

Patented Dinghy Lift

Our new patented RIB dinghy lift system allows you to take advantage of all the benefits of outboard cruising without sacrificing the ability to carry a full-size RIB dinghy.

Performance

  • 350 HP Yamaha F350 outboard, electric steering (DES)
  • Electric trim tabs
  • Laminar flow interrupters
  • Bow thruster
  • Trailerable - 8’6” beam

Accommodations & Interior Comfort

  • Atrium skylights
  • Climate control (heat and air conditioning)
  • Cabin drink holders, 5
  • Curtains for privacy
  • Dinette (seats 4) converts to bed
  • Fully enclosed head
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 1
  • Indirect cabin lighting
  • LED lighting
  • Electric marine toilet w/ holding tank, pump out
  • Midship berth
  • Opening portlights, 3
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in stateroom

Deck Features

  • Anchor package, 16.5 lb, 50’ chain, 150’ line
  • Bow lounge seating, 2
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 2
  • Sport racks, stainless steel
  • Swimming ladder, stainless steel
  • Swim step
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Cockpit cover, soft-top
  • Cockpit drink holders, 3
  • Cockpit seating, 5+
  • Cockpit sink
  • Cockpit table
  • Downrigger plugs and pads
  • Electric grill
  • Livewell
  • Opening glass bulkhead w/ reversible seat
  • Transom entry door for boarding

Helm

  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single-lever
  • autopilot
  • 12" Garmin navigation system w/ GPS and sonar
  • Garmin radar, xHD
  • Helm drink holders, 2
  • USB charging ports
  • Windshield wipers, 2

Galley

  • Cutting board
  • Galley cabinets, 4
  • Galley drawers, 4
  • Microwave
  • Oven, propane
  • Refrigerator/freezer
  • Sink with hot and cold water, with pull-out rinse faucet
  • Stove top, propane

Mechanical & Electrical

  • AC electrical panel
  • Battery charger
  • DC electrical panel
  • Galvanic isolator
  • Inverter
  • Lithium (LiFePO4) house batteries
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Integrated trailer lights
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aluminum triple axle trailer, electric/hydraulic brakes, spare tire and mount
  • Aft cockpit sun shade w/sunset shade
  • Aux./Kicker motor bracket
  • Auxiliary Motor Package: 9.9 HP, tie bar steering w/ remote throttle control
  • Dinghy motor storage bracket (R-27)
  • Cockpit Refrigerator
  • Dinghy lift (w/ 260 RIB inflatable)
  • Factory Delivery Experience
  • Hull color upgrade
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

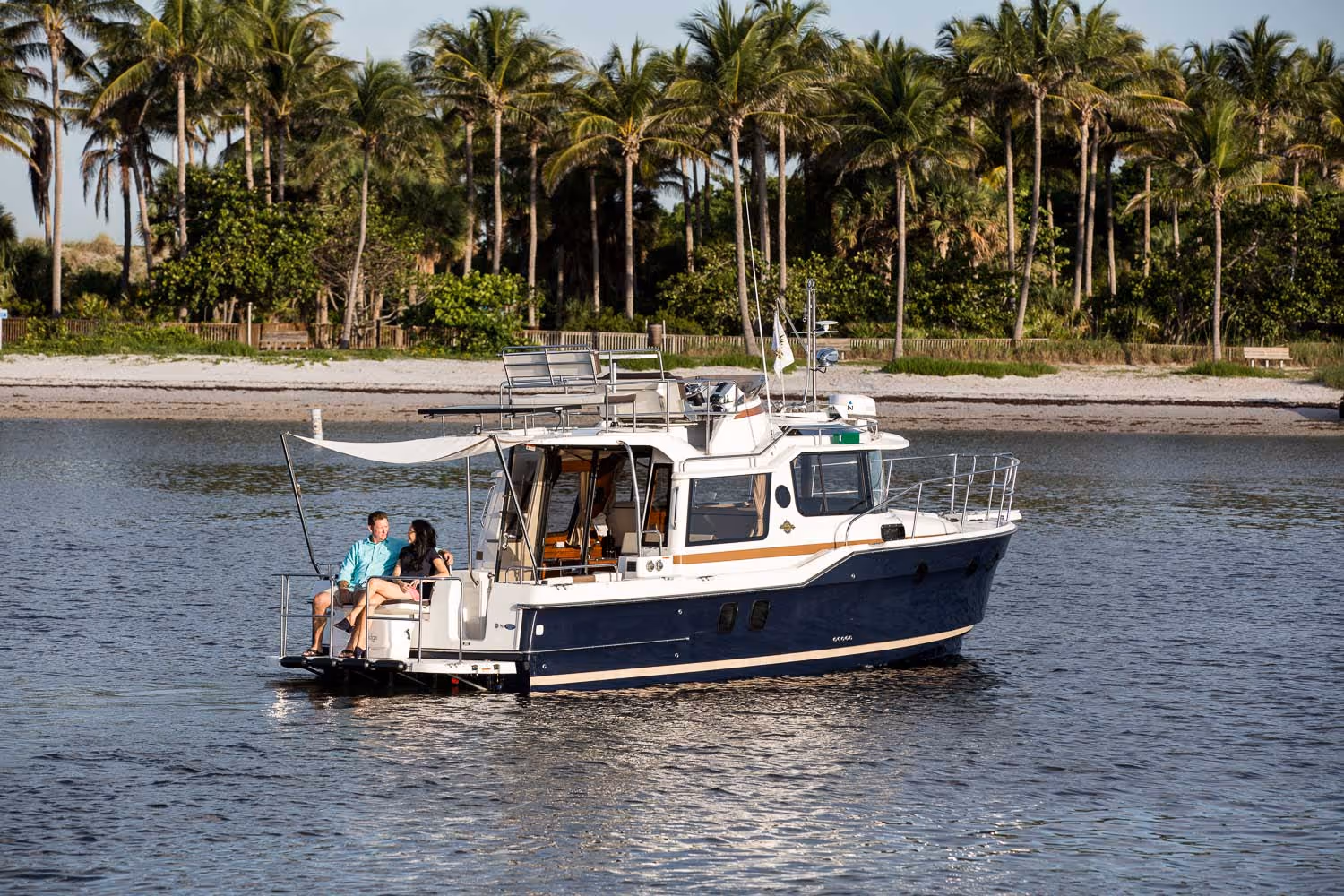

R-29 CB

Specifications

  • Engine: Volvo D4 320 HP diesel inboard
  • LOA (rigged): 33' 10.06 m
  • Draft: 30" 0.76 m
  • Beam: 10' 3.05 m
  • Bridge clearance (mast down) : 9' 11" 3.02 m
  • Bridge clearance (mast up): 12' 10" 3.91 m
  • Height on trailer (estimated): 13' 1" 3.99 m
  • Length on trailer (estimated): 38' 9" 11.81 m
  • Fuel capacity: 145 US gal 548.9 L
  • Water capacity: 45 US gal 170.3 L
  • Waste capacity: 40 US gal 151.4 L
  • Weight, dry: 10,800 lbs 4,899 kg

The Ranger Tugs R-29 CB (Command Bridge) offers all of the innovative features that we’ve incorporated into the beautifully designed R-29 S but also adds the comfort, convenience, and excitement of a command bridge. The new command bridge features seating for four and a full suite of electronic controls including VHF, bow & stern thruster controls, Volvo engine controls, spotlight remote, lighted compass, autopilot, and Garmin Navigation system. Access to the bridge is achieved by climbing the teak steps in the aft cockpit area. On the bridge you’ll also find convenient grab rails for safety, 12v power, cupholders, and weatherproof speakers.

The more modern styling of the R-29 CB features a curved front window and an overhead glass atrium that provides exceptional visibility from the helm station and salon area.
An ingenious aft cockpit seating arrangement includes a reversible seat, port and starboard jump seats and a teak table for outside dining. The opening cabin bulkhead with reversible seat provides additional cockpit seating while bringing the outside-in.

The Ranger Tugs R-29 CB can accommodate up to six adults on three separate berths, including the forward island berth with en-suite head. The R-29 is powered by a fuel efficient 320 HP Volvo Inboard Diesel engine that is located completely outside of the cabin for quiet cruising. Standard stern and bow thrusters with wireless remote make docking exceptionally easy.

Model Features

Garmin Navigation Suites at Upper and Lower Helm Stations

The lower helm features a 12” Garmin chartplotter. The command bridge helm is equipped with a 12” chartplotter. Both units utilize xHD radar, sonar, AIS receiving and autopilot with remote. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and more from either station.

Command Bridge

Safely accessed by staircase, the command bridge features seating for four as well as a dining table, providing you with an entirely new perspective when entertaining or navigating. The command bridge helm station features a 12” Garmin chartplotter, bow/stern thruster controls, autopilot, VHF and Volvo engine controls.

Multifunction Seating

From the reversing sunset seat, which can face towards the cockpit or aft to take in the view, to the opening bulkhead seat, or folding side seats, all the seating in the R-29 CB maximizes available space and usability.

Full Galley

The full galley aboard the R-29 CB is a chef’s dream, featuring a propane stove and oven with broiler, sink with pull-out rinse faucet, cutting board, ample storage, refrigerator/freezer combo, 110v outlet, wine/water cooler and microwave.

Bow and Stern Thrusters

Included bow and stern thrusters make docking
and close quarters maneuvering a breeze. The wireless thruster remote allows for additional flexibility and control.

Cabin Atrium Skylights
and Hatches

The cabin is open and bright, featuring overhead atrium skylights with heat reflective tint and opening rooftop hatches.

Performance

  • 320 HP Volvo D4 diesel inboard
  • Electric trim tabs
  • Bow and stern thrusters
  • Thruster wireless remote
  • Trailerable - 10’ beam

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning)
  • Atrium skylights
  • Cabin Drink holders, 6
  • Cabin heater (engine)
  • Curtains for privacy
  • Dinette (seats 4) converts to bed
  • Fully enclosed head
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilet w/ holding tank
  • Memory foam mattress
  • Midship stateroom
  • Opening portlights, 1
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in salon
  • TV in stateroom

Deck Features

  • Anchor package, 22 lb, 50’ chain, 200’ line
  • Bow beaching ladder, stainless steel
  • Bow pulpit
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 2
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Cockpit cover, hard-top w/ hatches and lights
  • Cabin drink holders, 5
  • Cockpit refrigerator
  • Cockpit seating, 7+
  • Cockpit table
  • Opening glass bulkhead w/ reversible seat
  • Powered engine hatch
  • Reversible sunset seat
  • Transom entry door for boarding
  • Downrigger plugs and pads

Helm

  • Autopilot
  • AIS receiving
  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single lever
  • 12" Garmin navigation system w/ GPS and sonar
  • Garmin radar, xHD
  • Helm drink holders, 2
  • Helm seat, double
  • Windshield wipers, 3

Galley

  • Cutting board
  • Galley cabinets, 2
  • Galley drawers, 4
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Refrigerator/freezer
  • Sink with hot and cold water, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Command Bridge

  • Access via staircase
  • Command bridge table
  • Drink holders, 2
  • Full helm controls
  • 12" Garmin navigation system
  • Seating, 4

Mechanical & Electrical

  • AC electrical panel
  • Lithium (LiFePO4) house batteries
  • Battery charger
  • DC electrical panel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aft cockpit sun shade w/sunset shade
  • Bimini Top, Command Bridge
  • Cockpit Freezer, (in lieu of cockpit refrigerator)
  • Garmin GXM Weather Antenna
  • Garmin, second helm screen
  • Low speed module
  • Aft station steering with electronic controls
  • Carpet Runner (Interior)
  • Factory Delivery Experience
  • Dinghy, inflatable RIB 290 CSM hypalon with Weaver davits, stand-off & winch
  • Volvo Five Year Extended Coverage
  • Hull color upgrade
  • Aluminum triple axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

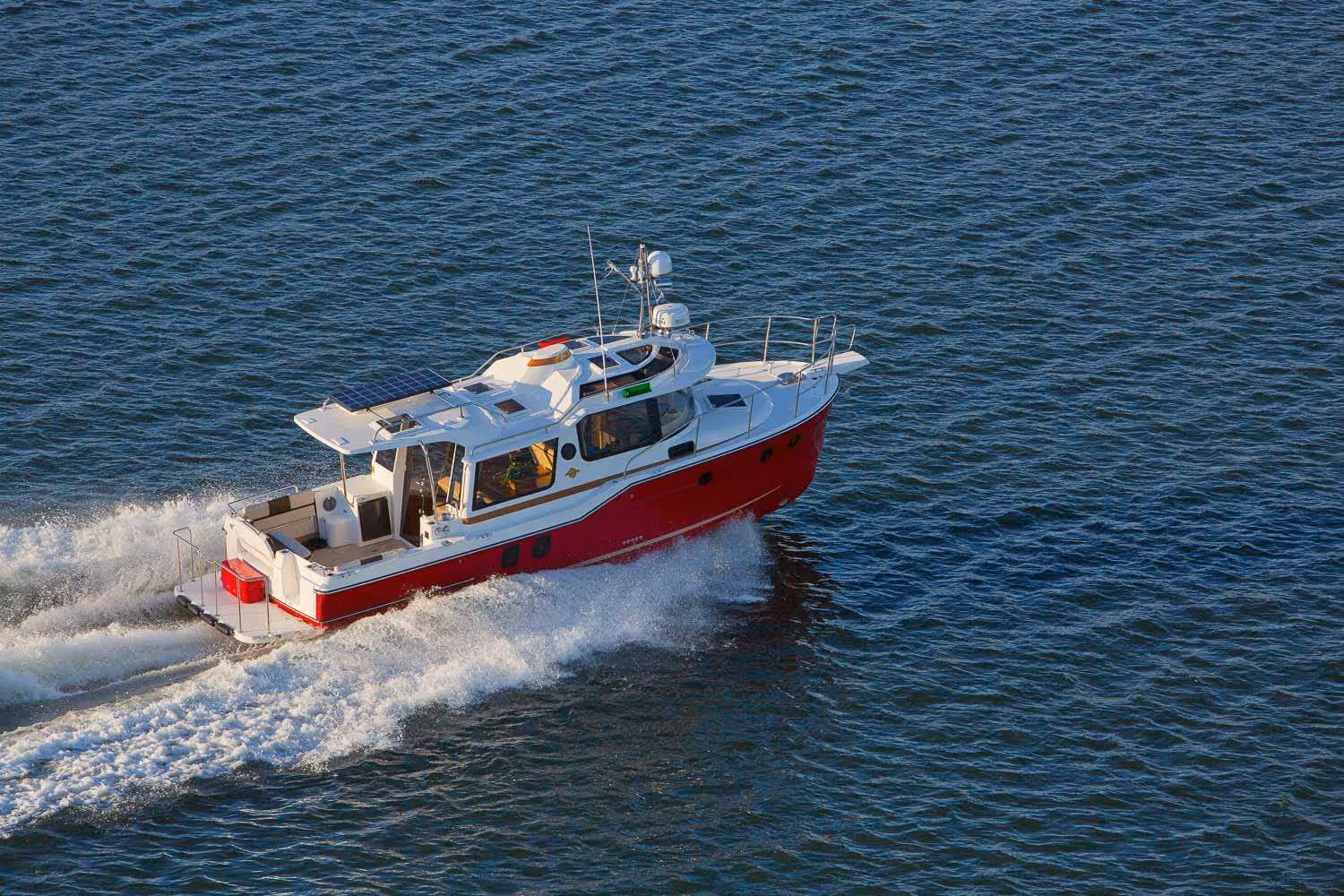

R-29 S

Specifications

  • Engine: Volvo D4 320 HP diesel inboard
  • LOA (rigged): 33' 10.06 m
  • Draft: 30" 0.76 m
  • Beam: 10' 3.05 m
  • Bridge clearance (mast down) : 9' 11" 3.02 m
  • Bridge clearance (mast up): 12' 10" 3.91 m
  • Height on trailer (estimated): 13' 1" 3.99 m
  • Length on trailer (estimated): 38' 9" 11.81 m
  • Fuel capacity: 145 US gal 548.9 L
  • Water capacity: 45 US gal 170.3 L
  • Waste capacity: 40 US gal 151.4 L
  • Weight, dry: 10,800 lbs 4,899 kg

The Ranger Tugs R-29 S (Sedan) is another masterpiece of innovation. The contemporary styling features a curved front window and an overhead glass atrium that provides exceptional visibility from the helm station and salon area. An ingenious aft cockpit seating arrangement includes a reversible seat, port and starboard jump seats and a teak table for outside dining. The opening cabin bulkhead with reversible seat provides additional cockpit seating while bringing the outside-in.

The Ranger Tug R-29 S accommodates up to six adults on three separate berths, including the forward island berth with en-suite head. The R-29 S is powered by a fuel efficient 320 HP Volvo Inboard Diesel engine that is located completely outside of the cabin for quiet cruising. Standard stern and bow thrusters make docking exceptionally easy.

Model Features

12” Garmin Chartplotter with xHD Radar

A full navigation package from Garmin including a 12” GPS chartplotter with sonar and xHD radar is standard equipment on the R-29 S. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and much more.

Multifunction Seating

From the reversing sunset seat, which can face towards the cockpit or aft to take in the view, to the opening bulkhead seat, or folding side seats, all the seating in the R-29 S maximizes available space and usability.

Full Galley

The full galley aboard the R-29 S is a chef’s dream, featuring a propane stove and oven with broiler, sink with pull-out rinse faucet, cutting board, ample storage, refrigerator/freezer combo, 110v outlet, wine/water cooler and microwave.

Solar Panel

The included solar panel helps to keep your batteries charged while you’re boating off-grid. Now you can go further and stay longer without the need for shore power or a generator.

Bow and Stern Thrusters

Included bow and stern thrusters make docking
and close quarters maneuvering a breeze. The wireless thruster remote allows for additional flexibility and control.

Cabin Atrium Skylights
and Hatches

The cabin is open and bright, featuring overhead atrium skylights with heat reflective tint and opening rooftop hatches.

Performance

  • 320 HP Volvo D4 diesel inboard
  • Electric trim tabs
  • Bow and stern thrusters
  • Thruster wireless remote
  • Trailerable - 10’ beam

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning)
  • Atrium skylights
  • Cabin Drink holders, 6
  • Cabin heater (engine)
  • Curtains for privacy
  • Dinette (seats 4) converts to bed
  • Fully enclosed head
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilet w/ holding tank
  • Memory foam mattress
  • Midship stateroom
  • Opening portlights, 1
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in salon
  • TV in stateroom

Deck Features

  • Anchor package, 22 lb, 50’ chain, 200’ line
  • Bow beaching ladder, stainless steel
  • Bow pulpit
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 2
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Cockpit cover, hard-top w/ hatches and lights
  • Cabin drink holders, 5
  • Cockpit refrigerator
  • Cockpit seating, 7+
  • Cockpit table
  • Opening glass bulkhead w/ reversible seat
  • Powered engine hatch
  • Reversible sunset seat
  • Transom entry door for boarding
  • Downrigger plugs and pads

Helm

  • Autopilot
  • AIS receiving
  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single lever
  • 12" Garmin navigation system w/ GPS and sonar
  • Garmin radar, xHD
  • Helm drink holders, 2
  • Helm seat, double
  • Windshield wipers, 3

Galley

  • Cutting board
  • Galley cabinets, 2
  • Galley drawers, 4
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Refrigerator/freezer
  • Sink with hot and cold water, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Command Bridge

  • Access via staircase
  • Command bridge table
  • Drink holders, 2
  • Full helm controls
  • 12" Garmin navigation system
  • Seating, 4

Mechanical & Electrical

  • AC electrical panel
  • Lithium (LiFePO4) house batteries
  • Battery charger
  • DC electrical panel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aft cockpit sun shade w/sunset shade
  • Bimini Top, Command Bridge
  • Cockpit Freezer, (in lieu of cockpit refrigerator)
  • Garmin GXM Weather Antenna
  • Garmin, second helm screen
  • Low speed module
  • Aft station steering with electronic controls
  • Carpet Runner (Interior)
  • Factory Delivery Experience
  • Dinghy, inflatable RIB 290 CSM hypalon with Weaver davits, stand-off & winch
  • Volvo Five Year Extended Coverage
  • Hull color upgrade
  • Aluminum triple axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

R-31 CB

Specifications

  • Engine: Volvo D4 320 HP diesel inboard
  • LOA (rigged): 34' 10" 10.62 m
  • Draft: 30" 0.76 m
  • Beam: 10' 3.05 m
  • Bridge clearance (bridge & mast down): 10' 3" 3.12 m
  • Bridge clearance (bridge & mast up): 18' 2" 5.54 m
  • Height on trailer (bridge & mast down w/ radar, estimated): 13' 4" 4.06 m
  • Length on trailer (estimated): 41' 12.5 m
  • Fuel capacity: 180 US gal 681.4 L
  • Water capacity: 60 US gal 227.1 L
  • Hot water capacity: 11 US gal 41.6 L
  • Waste capacity: 40 US gal 151.4 L
  • Weight, dry: 12,500 lbs 5,670 kg

The R-31 CB shares many of the features and qualities of her smaller sisterships but some notable additions to this larger model make her ideal for extended cruising while still being a trailerable trawler. The R-31 CB was the first Ranger Tug to feature a flybridge equipped with electronic controls at both the upper and lower helm. The flybridge also retracts to allow for trailering the 31’. The builders at Ranger Tugs also equipped the foredeck with seating and a table that can be raised or lowered depending on whether the boat is under way or at anchor or dock for entertaining. In addition to the extra seating on the flybridge and foredeck the R-31 CB allows for a larger cockpit area with wraparound seating and extra seating that folds out of the gunwale. When not entertaining, seats are folded leaving the cockpit unencumbered.

The interior layout of the R-31 CB features two staterooms—one large island berth forward with en suite head and a midship berth and day head. Those who are familiar with Ranger Tugs models will recognize the galley layout and lower helm station that maximize interior space. A starboard side door provides easy access from the lower helm to the side decks so crew can get to the bow for line handling.

Like all Ranger Tugs, the R-31 CB comes turn-key with standard features and equipment intended to make her owner’s experience hassle-free and allow for ease of handling and comfort under way. Standard equipment includes bow and stern thrusters and a Volvo D4 320 HP engine that achieves a 16 knot cruise speed.

Model Features

Garmin Navigation Suites at Upper and Lower Helm Stations

The lower helm station features a 16” Garmin chartplotter. The command bridge helm station is equipped with a 12” chartplotter. Both units utilize xHD radar, sonar, AIS receiving and autopilot with remote. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and more from either station.

Multifunction Seating

Innovative, one of a kind, expanding gunwale seats transform the cockpit into a social area, with seating for six+ and a beautiful wood table. True to Ranger Tug’s DNA, all the seating in the R-31 CB maximizes available space and usability.

Full Galley

The full galley aboard the R-31 CB is a chef’s dream, featuring a propane stove and oven with broiler, double basin sink with pull-out rinse faucet, cutting board, silverware and utensil drawers, large cabinets, refrigerator/freezer combo, 110v outlet, wine/water cooler and microwave.

Command Bridge

Safely accessed by staircase, the command bridge features seating for six as well as a dining table, providing you with an entirely new perspective when entertaining or navigating. The command bridge helm station features a 12” Garmin chartplotter, bow/stern thruster controls, autopilot, VHF and Volvo engine controls.

Bow and Stern Thrusters

Included bow and stern thrusters make docking and close quarters maneuvering a breeze. The wireless thruster remote allows for additional flexibility and control.

Helm Door

The R-31 CB features a full-size helm door allowing convenient access to the bow and easy fender and line handling.

Midship Stateroom

The midship stateroom aboard the R-31 CB is large enough to comfortably sleep two and features a day head as well as a hanging rack for additional storage.

Performance

  • 320 HP Volvo D4 diesel inboard
  • Electric trim tabs
  • Bow and stern thrusters
  • Thruster wireless remote
  • Trailerable - 10’ beam

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning)
  • Cabin Drink holders, 4
  • Cabin heater (engine)
  • Curtains for privacy

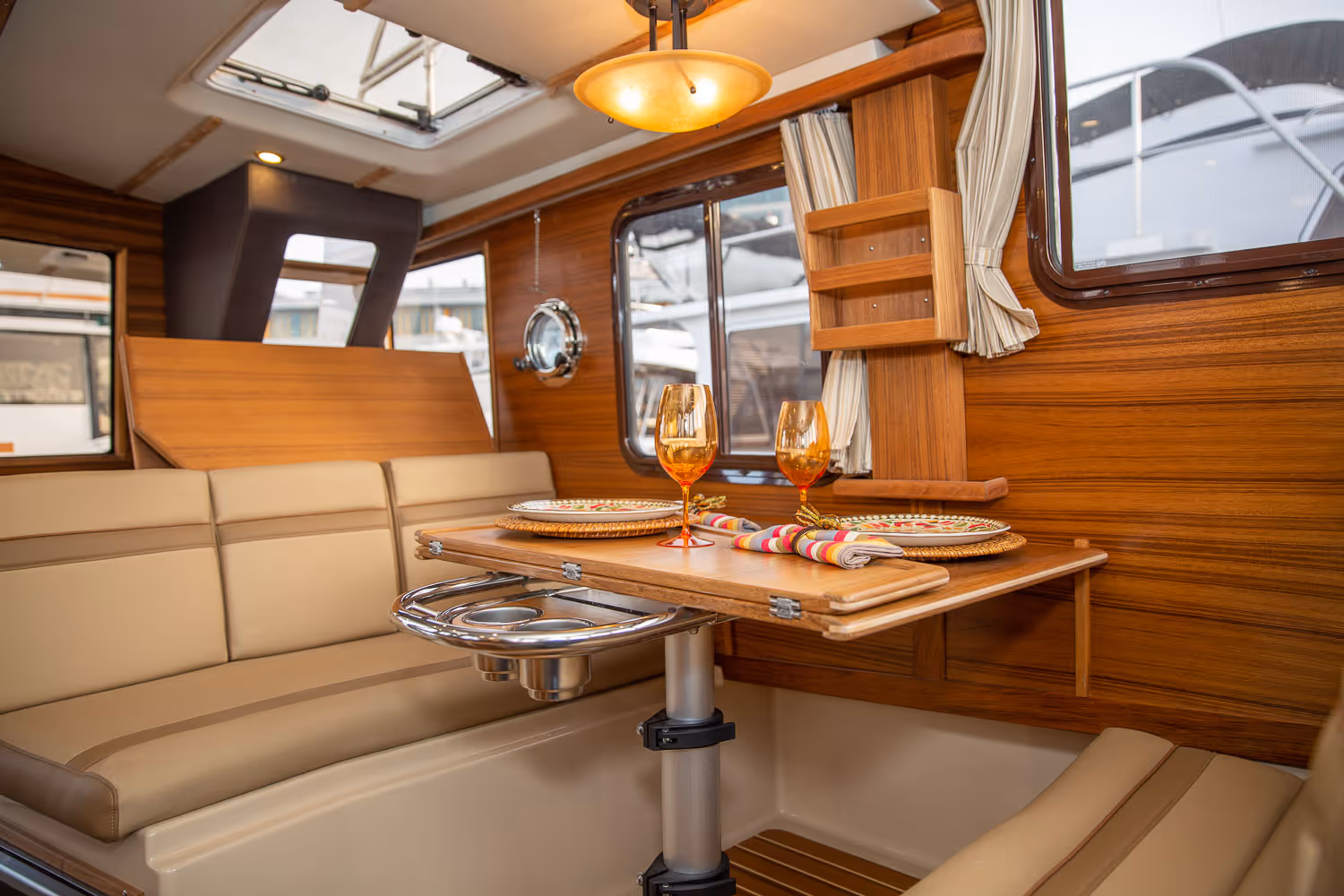

  • Dinette (seats 5) converts to bed

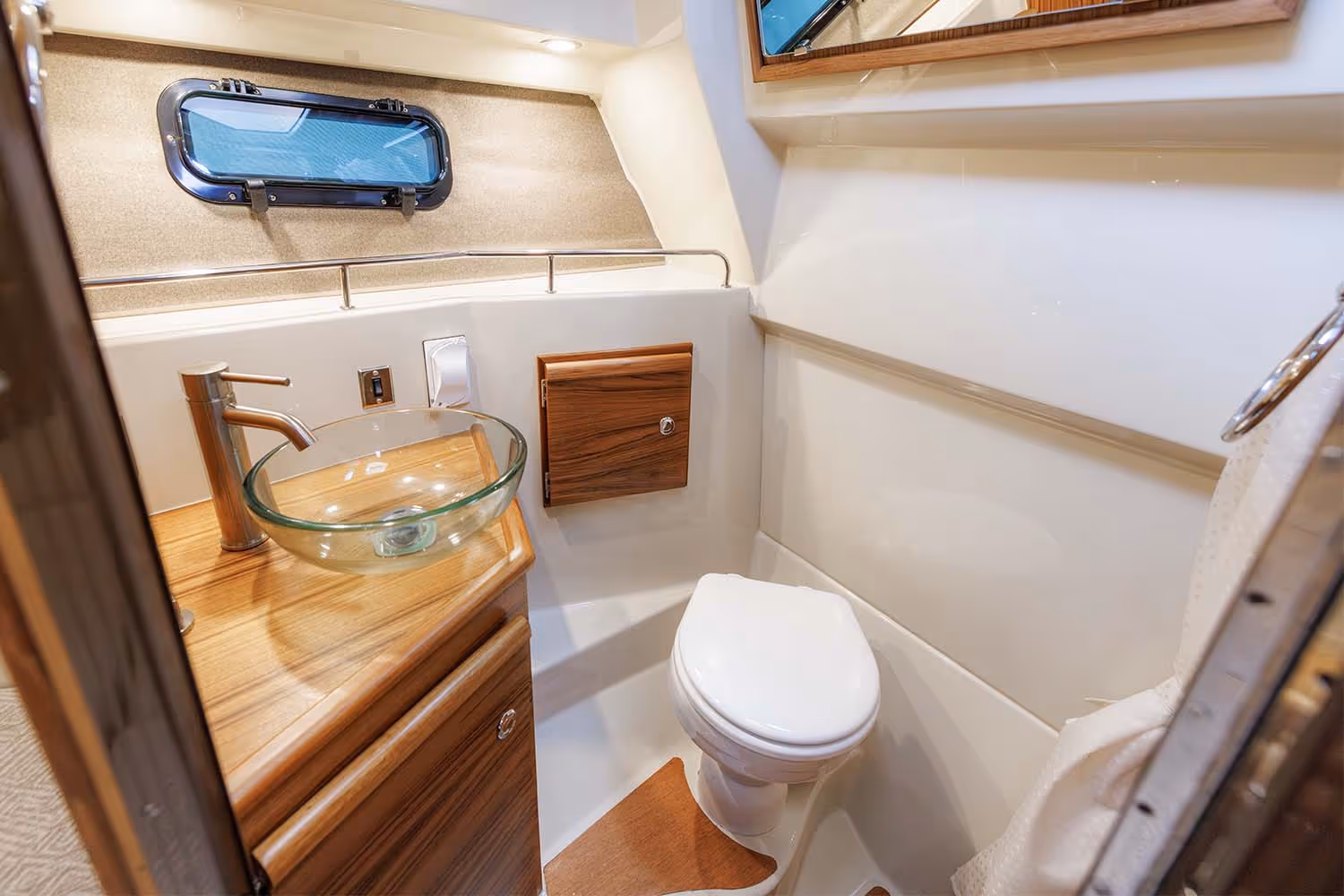

  • Fully enclosed head
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 1
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilet w/ holding tank
  • Memory foam mattress
  • Midship stateroom
  • Opening portlights, 2
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in salon
  • TV in stateroom

Deck Features

  • Anchor package, 22 lb, 50’ chain, 200’ line
  • Bow lounge seating, 2
  • EVA foam traction decking
  • Folding stainless steel mast for trailering
  • Forward line storage
  • Rod holders, 2
  • Sport racks, stainless steel
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

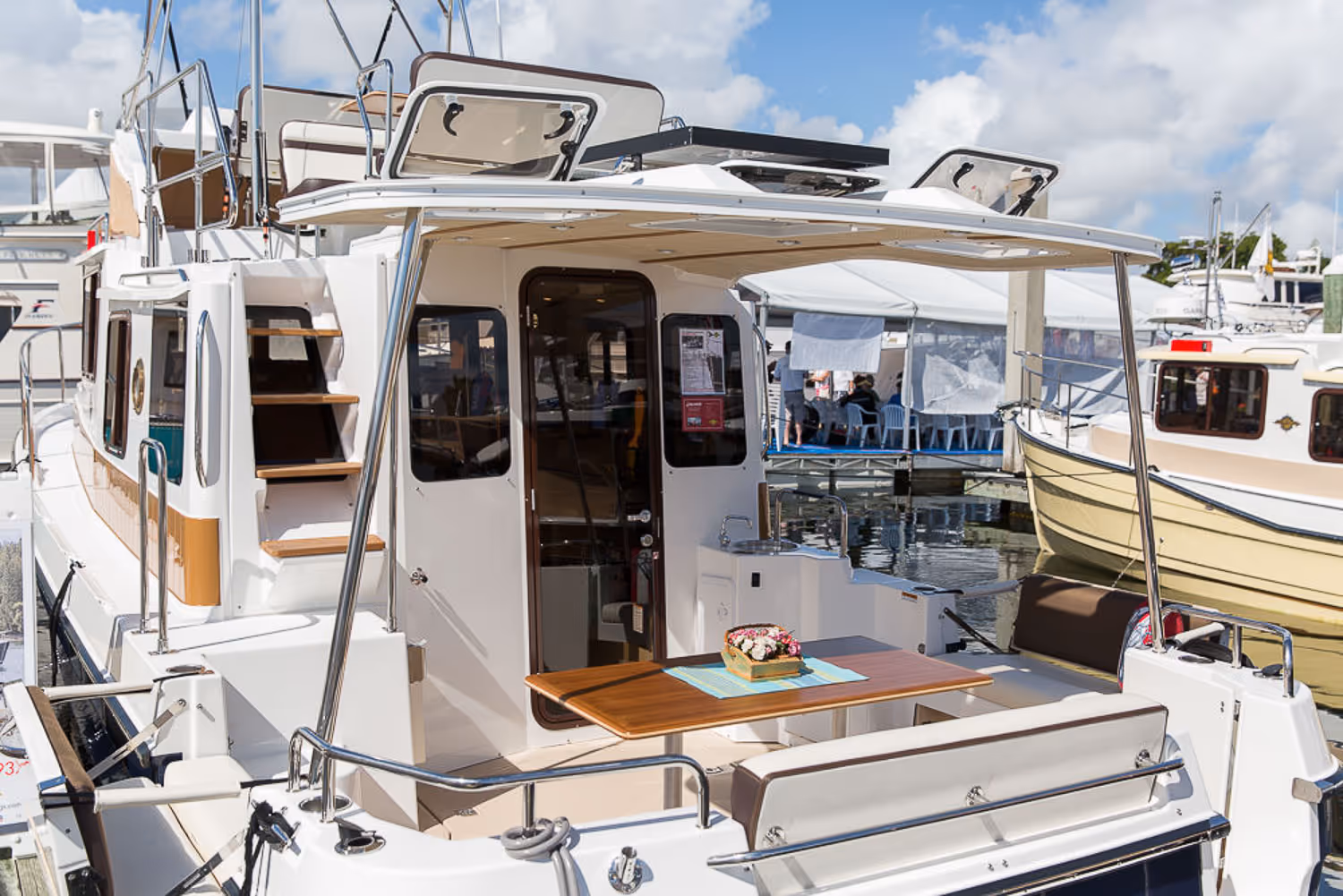

Cockpit

  • Cockpit cover, hard-top w/ hatches and lights
  • Cabin drink holders, 5
  • Cockpit refrigerator
  • Cockpit seating, 6+
  • Cockpit sink
  • Cockpit table
  • Fold-out gunwale seating
  • Powered engine hatch
  • Transom entry door for boarding
  • Downrigger plugs and pads

Helm

  • Autopilot
  • AIS receiving
  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single lever
  • 16" Garmin navigation system w/ GPS and sonar
  • Garmin radar, xHD
  • Helm drink holder
  • Helm seat, double
  • Sliding helm door
  • Windshield wipers, 4

Galley

  • Cutting board
  • Galley cabinets, 4
  • Galley drawers, 4
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Refrigerator/freezer
  • Sink with hot and cold water, double basin, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Command Bridge

  • Access via staircase
  • Drink holders, 2
  • Full helm controls
  • 12" Garmin navigation system
  • Removable command bridge table
  • Seating, 6

Mechanical & Electrical

  • AC electrical panel
  • Lithium (LiFePO4) house batteries
  • Battery charger
  • DC electrical panel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aft cockpit sun shade w/sunset shade
  • Bimini Top Command Bridge
  • Cockpit Freezer, (in lieu of cockpit refrigerator)
  • Garmin GXM Weather Antenna
  • Low speed module
  • Aft station steering with electronic controls
  • Carpet Runner (Interior)
  • Factory Delivery Experience
  • Dinghy, inflatable RIB 290 CSM hypalon with Weaver davits, stand-off & winch
  • Volvo Five Year Extended Coverage
  • Hull color upgrade
  • Aluminum triple axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

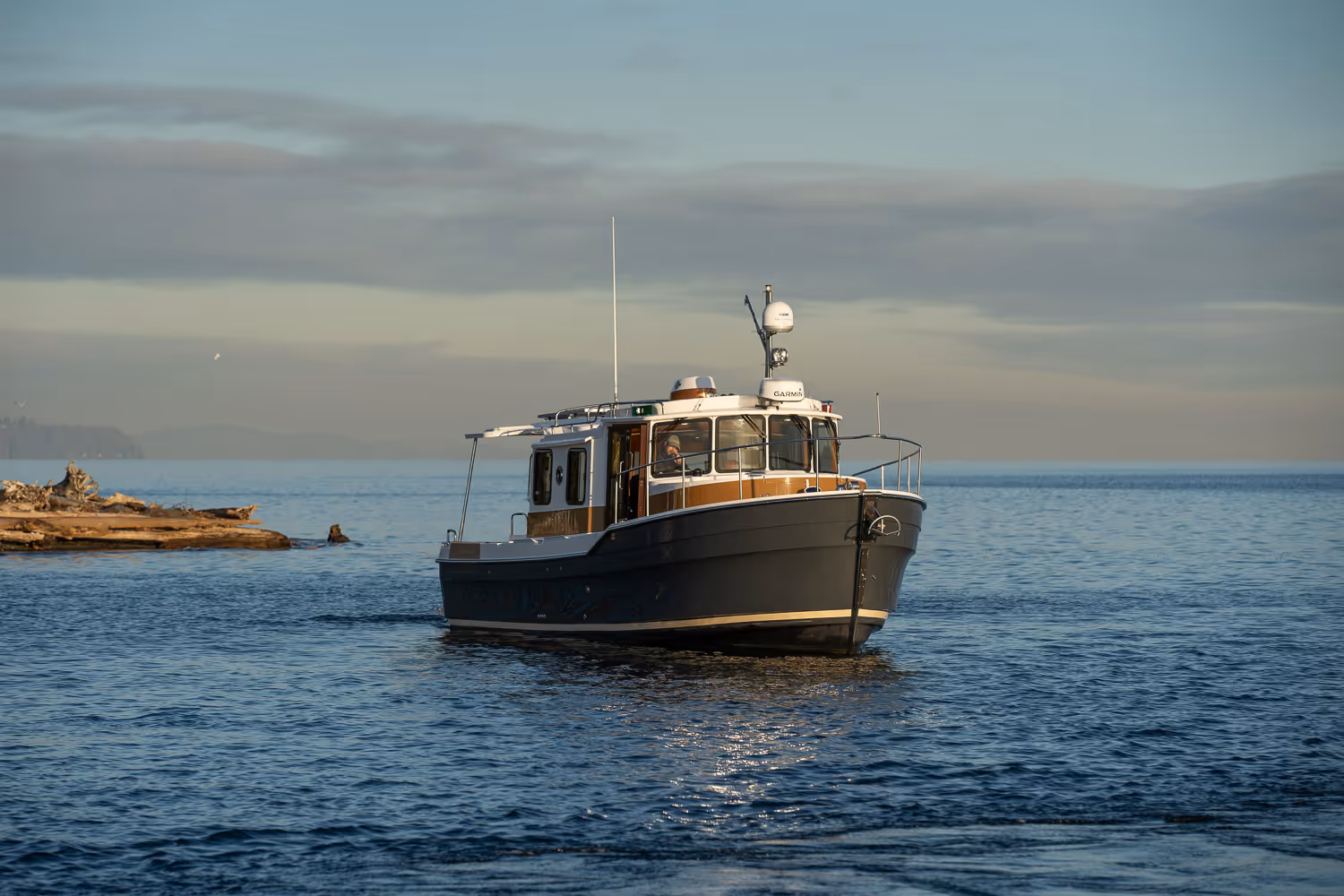

R-31 S

Specifications

  • Engine: Volvo D4 320 HP diesel inboard
  • LOA (rigged): 34' 10" 10.62 m
  • Draft: 30" 0.76 m
  • Beam: 10' 3.05 m
  • Bridge clearance (mast down): 10' 3.05 m
  • Bridge clearance (mast up): 13' 10" 4.22 m
  • Height on trailer (mast down w/ radar, estimated): 13' 6" 4.11 m
  • Length on trailer (estimated): 41' 12.5 m
  • Fuel capacity: 180 US gal 681.4 L
  • Water capacity: 60 US gal 227.1 L
  • Hot water capacity: 11 US gal 41.6 L
  • Waste capacity: 40 US gal 151.4 L
  • Weight, dry: 12,000 lbs 5,443 kg

The R-31 S shares many of the features and qualities of her smaller sisterships but some notable additions to this larger model make her ideal for extended cruising while still being a trailerable trawler. The builders at Ranger Tugs equipped the foredeck with seating and a table that can be raised or lowered depending on whether the boat is under way or at anchor or dock for entertaining. In addition to the foredeck seating, the R-31 boasts a larger cockpit area with wraparound seating utilizing seats that fold out of the gunwale. When not entertaining, seats are folded leaving the
cockpit unencumbered.

The interior layout of the R-31 S features two staterooms—one large island berth forward with en suite head and a midship berth and day head. Those who are familiar with Ranger Tugs models will recognize the galley layout and helm station that maximize interior space. A starboard side door provides easy access from the helm to the side decks so crew can get to the bow for line handling.

Like all Ranger Tugs, the R-31 S comes essentially turnkey with standard features and equipment intended to make her owner’s experience hassle-free and allow for ease of handling and comfort under way. Standard equipment includes bow and stern thrusters and a Volvo D4 320 HP engine that achieves a 16 knot cruise speed.

Model Features

16” Garmin Chartplotter with xHD Radar

A full navigation package from Garmin including a large 16” GPS chartplotter with sonar and xHD radar is standard equipment on the R-31 S. Easily monitor fuel flow, engine data, bottom conditions, GPS location, tides and much more.

Multifunction Seating

Innovative, one of a kind, expanding gunwale seats transform the cockpit into a social area, with seating for six+ and a beautiful wood table. True to Ranger Tug’s DNA, all the seating in the R-31 S maximizes available space and usability.

Full Galley

The full galley aboard the R-31 S is a chef’s dream, featuring a propane stove and oven with broiler, double basin sink with pull-out rinse faucet, cutting board, silverware and utensil drawers, large cabinets, refrigerator/freezer combo, 110v outlet, wine/water cooler and microwave.

Solar Panel

The included solar panel helps to keep your batteries charged while you’re boating off-grid. Now you can go further and stay longer without the need for shore power or a generator.

Bow and Stern Thrusters

Included bow and stern thrusters make docking and close quarters maneuvering a breeze. The wireless thruster remote allows for additional flexibility and control.

Helm Door

The R-31 S features a full-size helm door allowing convenient access to the bow and easy fender and line handling.

Midship Stateroom

The midship stateroom aboard the R-31 S is large enough to comfortably sleep two and features a day head as well as a hanging rack for additional storage.

Performance

  • 320 HP Volvo D4 diesel inboard
  • Electric trim tabs
  • Bow and stern thrusters
  • Thruster wireless remote
  • Trailerable - 10’ beam

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning)
  • Cabin Drink holders, 4
  • Cabin heater (engine)
  • Curtains for privacy
  • Dinette (seats 5) converts to bed
  • Fully enclosed head
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 1
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilet w/ holding tank
  • Memory foam mattress
  • Midship stateroom
  • Opening portlights, 2

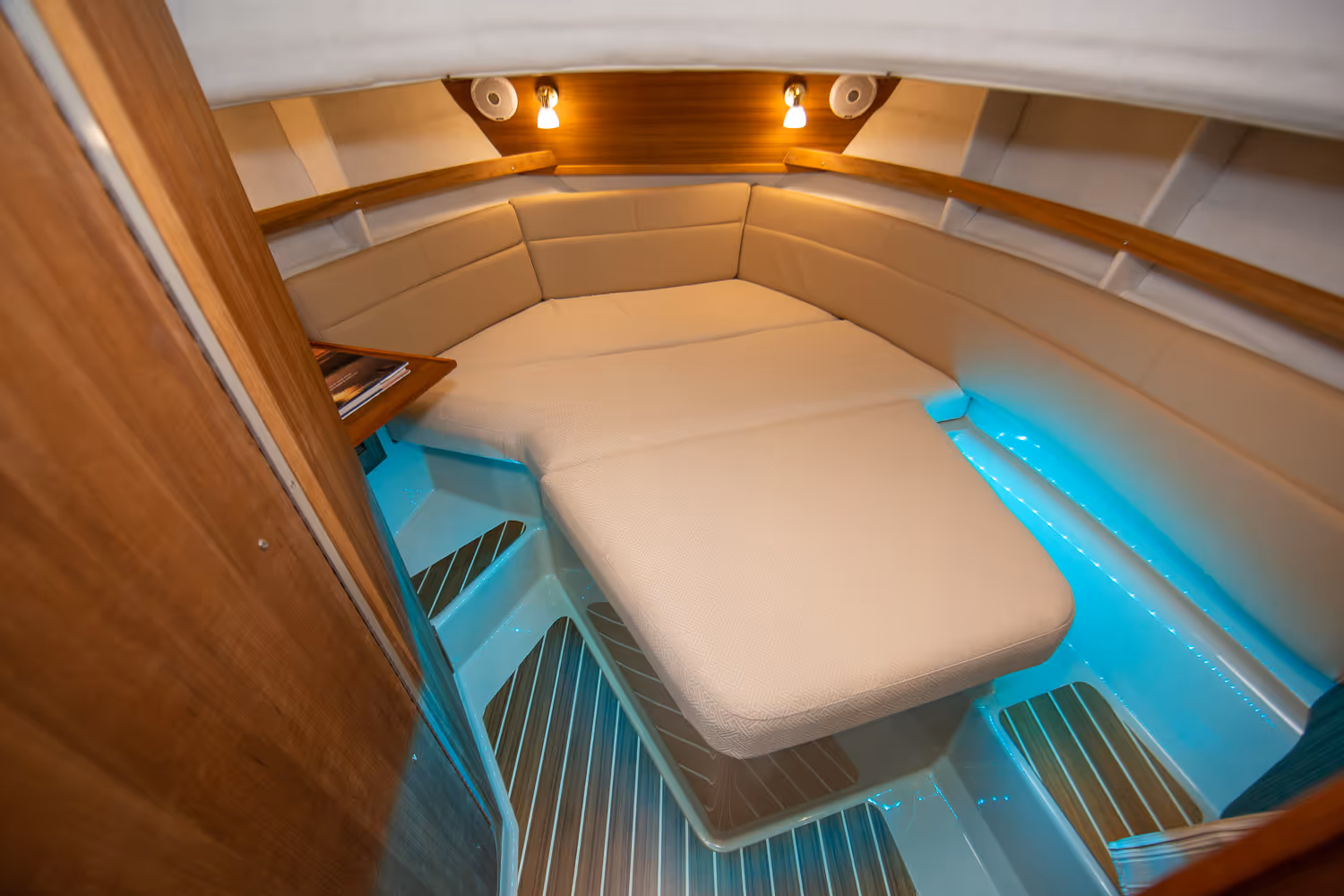

  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in salon
  • TV in stateroom

Deck Features

  • Anchor package, 22 lb, 50’ chain, 200’ line
  • Bow lounge seating, 2
  • EVA foam traction decking
  • Forward line storage
  • Rod holders, 2
  • Sport racks, stainless steel
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Cockpit cover, hard-top w/ hatches and lights
  • Cabin drink holders, 5
  • Cockpit refrigerator
  • Cockpit seating, 6+
  • Cockpit sink
  • Cockpit table
  • Downrigger plugs and pads
  • Fold-out gunwale seating
  • Powered engine hatch
  • Transom entry door for boarding

Helm

  • Autopilot
  • AIS receiving
  • Color engine display
  • Digital fuel flow data
  • Electronic shift and throttle control, single lever
  • 16" Garmin navigation system w/ GPS and sonar
  • Garmin radar, xHD
  • Sliding helm door
  • Helm drink holder
  • Windshield wipers, 4

Galley

  • Cutting board
  • Galley cabinets, 4
  • Galley drawers, 4
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Pull-out rinse faucet
  • Refrigerator/freezer
  • Sink with hot and cold water, double basin, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Mechanical & Electrical

  • AC electrical panel
  • Lithium (LiFePO4) house batteries
  • Battery charger
  • DC electrical panel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 30amp Shorepower Cord
  • Solar panel, 175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats, rails, hardware
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Aft cockpit sun shade w/sunset shade
  • Cockpit Freezer, (in lieu of cockpit refrigerator)
  • Garmin GXM Weather Antenna
  • Low speed module
  • Aft station steering with electronic controls
  • Carpet Runner (Interior)
  • Factory Delivery Experience
  • Dinghy, inflatable RIB 290 CSM hypalon with Weaver davits, stand-off & winch
  • Volvo Five Year Extended Coverage
  • Hull color upgrade
  • Aluminum triple axle trailer with electric/hydraulic brakes spare tire/bracket
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

R-43 CB

Specifications

  • Engine: Volvo Twin IPS450 POD drives
  • LOA (rigged): 46' 9" 14.25 m
  • Draft: 42" 1.07 m
  • Beam: 14' 4.27 m
  • Bridge clearance (mast down): 13' 9" 4.19 m
  • Bridge clearance (mast up): 20' 6" 6.25 m
  • Fuel capacity: 300 US gal 1,135.6 L
  • Water capacity: 120 US gal 454.2 L
  • Waste capacity: 57 US gal 215.8 L
  • Generator fuel: 30 US gal 113.6 L

The beautiful R-43 Command Bridge is as luxurious
and comfortable as it is strong and seaworthy.

The R-43 Command Bridge is thoughtfully equipped with many innovative features that will make your life on the water stress free and fun like it’s supposed to be. Designed and built by hand in the USA, the R-43 CB will turn heads and collect fans everywhere you go.

The heart of the R-43 Command Bridge is its spacious, light-filled salon; with a conversational layout and seating for 12, you’ll make a lifetime’s worth of memories with friends and family in this warm, inviting space. With two private staterooms, each with en suite head and shower, there’s plenty of room to comfortably entertain guests.

You’ll feel confident in all conditions with twin Volvo IPS drives, joystick driving and docking, and a state of the art 22" Garmin navigation suite with chartplotter, AIS, autopilot, and radar. Add even more control with available gyroscope stabilization, Sionyx pan and tilt thermal camera, and Dynamic Positioning.

Access to the R-43’s large, covered cockpit is safe and easy from any dock via the starboard dive door, or the latched transom doors leading from the oversized swim platform. An opening glass pass-through window connects the galley and cockpit, creating an open, social area for entertaining and gathering. An icemaker, sink, Fusion stereo control, and joystick docking station can also be found in the cockpit, along with innovate transom seats and tables that rotate into multiple configurations depending on your desired use.

The R-43 CB features a 205 square foot command bridge which is accessed via staircase with handrail. With wraparound bench seating for eight, Fusion stereo control, refrigerator, electric grill and sink, you can prep, serve, and enjoy happy hour without ever having to go downstairs. Additional up top, you’ll find a davit lift featuring an electric winch, allowing you to easily stow and deploy your tender.

Among many things, the R-43 Command Bridge is about comfort, seaworthiness, and having fun! With amenities like a full size washer and dryer, a spacious galley equipped with a 3-burner stove and oven, double basin sink, microwave, multiple refrigerators, butcher block and more, you can live and entertain just like you would at home. The expansive cockpit and command bridge allow you to host and play outside while never feeling crowded.

Model Features

Performance

  • Twin Volvo IPS450 POD drives
  • Electric trim tabs
  • Joystick driving and docking, helm, cockpit, command bridge

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning), 3 units
  • Atrium skylights
  • Cabin drink holders, 3
  • Clothes washer and dryer, full-sized
  • Curtains for privacy
  • Dinette (seats 6) converts to bed
  • Fully enclosed heads
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilets w/ holding tank, pump out
  • Midship stateroom
  • Opening portlight
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • Utility room with storage, refrigerator, freezer
  • TV in salon
  • TV in stateroom

Deck Features

  • Anchor package, 44lb, 300' HT chain, 5/16", hook and bridle
  • Bow lounge seating, 2
  • Bow pulpit
  • EVA foam traction decking
  • Forward line storage
  • Rod holders, 2
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Aft cockpit sun & sunset shade
  • Cockpit cover, hard-top w/ hatches and lights
  • Cockpit drink holders, 4
  • Cockpit ice maker
  • Cockpit seating, 6+
  • Cockpit sink
  • Cockpit table
  • Powered engine hatches
  • Rotating transom seats with tables
  • Transom entry doors for boarding

Helm

  • AIS receiving
  • AIS transmitting
  • Autopilot
  • Backup camera
  • Color engine display, 7"
  • Digital fuel flow data
  • Electronic shift and throttle control, twin-lever
  • 22" Garmin navigation system w/ GPS and sonar, additional 7" display
  • Garmin radar, Fantom 24x
  • Helm drink holder
  • Helm seat, double
  • Sliding helm door
  • USB charging ports
  • Windshield wipers, 3
  • Wireless phone charger

Galley

  • Butcher block
  • Galley cabinets, 2
  • Galley drawers, 6
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Pantry/storage, in-floor
  • Refrigerator/freezer, 2
  • Sink with hot and cold water, double-basin, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Command Bridge

  • Access via staircase
  • Command bridge drink holders, 3
  • Command bridge refrigerator
  • Command bridge sink
  • Counter space for food prep/serving
  • Dinghy storage w/ davit lift
  • Electric grill
  • Full helm controls
  • Fusion stereo system
  • 16" Garmin navigation system
  • Removable command bridge table
  • Seating, 8

Mechanical & Electrical

  • AC electrical panel
  • Batteries
  • Battery charger
  • DC electrical panel
  • Generator, diesel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 50amp Shorepower Cord
  • Solar panels, 2x175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • ReFlex high density closed cell foam decking
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats rails, hardware
  • Teak interior
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Bimini top for command bridge
  • Forward sunshade
  • Dynamic Positioning
  • Garmin GXM Weather Antenna
  • Gyroscope mount and pre-rigging
  • Gyroscope stabilization
  • Bottom paint and propspeed
  • Diesel heating, forced air furnace, two units
  • Dinghy/motor package w/ Garmin ECHOMAP UHD 65 cv, transducer, chartplotter, winch assembly, safety kit and lines
  • Factory Delivery Experience
  • Sionyx pan and tilt thermal camera
  • Volvo Five Year Extended Coverage Special Offer (IPS per pair)
  • Hull color upgrade
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page

R-43 S

Specifications

  • Engine: Volvo Twin IPS450 POD drives
  • LOA (rigged): 46' 9" 14.25 m
  • Draft: 42" 1.07 m
  • Beam: 14' 4.27 m
  • Bridge clearance (mast down): 12' 4" 3.76 m
  • Bridge clearance (mast up): 15' 6" 4.72 m
  • Fuel capacity: 300 US gal 1,135.6 L
  • Water capacity: 120 US gal 454.2 L
  • Waste capacity: 57 US gal 215.8 L
  • Generator fuel: 30 US gal 113.6 L

The beautiful R-43 Sedan is as luxurious
and comfortable as it is strong and seaworthy.

The R-43 Sedan is thoughtfully equipped with many innovative features that will make your life on the water stress free and fun like it’s supposed to be. Designed and built by hand in the USA, the R-43 S will turn heads and collect fans everywhere you go.

The heart of the R-43 Sedan is its spacious, light-filled salon; with a conversational layout and seating for 12, you’ll make a lifetime’s worth of memories with friends and family in this warm, inviting space. With two private staterooms, each with en suite head and shower, there’s plenty of room to comfortably entertain guests.

You’ll feel confident in all conditions with twin Volvo IPS drives, joystick driving and docking, and a state of the art 22” Garmin navigation suite with chartplotter, AIS, autopilot, and radar. Add even more control with available gyroscope stabilization, Sionyx pan and tilt thermal camera, and Dynamic Positioning.

Access to the R-43’s large, covered cockpit is safe and easy from any dock via the starboard dive door, or the latched transom doors leading from the oversized swim platform. An opening glass pass-through window connects the galley and cockpit, creating an open, social area for entertaining and gathering. An icemaker, sink, Fusion stereo control, and joystick docking station can also be found in the cockpit, along with innovate transom seats and tables that rotate into multiple configurations depending on your desired use.

On the rooftop, there is a massive gear storage area and davit lift featuring an electric winch, allowing you to easily stow and deploy your tender. The roof is safely accessed via a stairwell leading up from the aft cockpit.

Among many things, the R-43 Sedan is about comfort, seaworthiness, and having fun! With amenities like a full size washer and dryer, a spacious galley equipped with a 3-burner stove and oven, double basin sink, microwave, multiple refrigerators, butcher block and more, you can live and entertain just like you would at home. The expansive cockpit and command bridge allow you to host and play outside while never feeling crowded.

Model Features

Performance

  • Twin Volvo IPS450 POD drives
  • Electric trim tabs
  • Joystick driving and docking, helm, cockpit

Accommodations & Interior Comfort

  • Climate control (heat and air conditioning), 3 units
  • Atrium skylights
  • Cabin drink holders, 3
  • Clothes washer and dryer, full-sized
  • Curtains for privacy
  • Dinette (seats 6) converts to bed
  • Fully enclosed heads
  • Fusion stereo system (multi-zone)
  • Hatches, pilothouse roof, solar reflective, 4
  • Hatches, stateroom, 2
  • Indirect cabin lighting
  • Island bed
  • LED lighting
  • Electric marine toilets w/ holding tank, pump out
  • Midship stateroom
  • Opening portlight
  • Private forward stateroom
  • Shower with enclosure
  • Storage under mattress
  • TV in salon
  • TV in stateroom
  • Utility room with storage, refrigerator, freezer

Deck Features

  • Anchor package, 44lb, 300' HT chain, 5/16", hook and bridle
  • Bow lounge seating, 2
  • Bow pulpit
  • EVA foam traction decking
  • Forward line storage
  • Rod holders, 2
  • Swimming ladder, stainless steel
  • Swim step, with built-in fenders
  • Washdown system
  • Windlass, bow and helm controls

Cockpit

  • Aft cockpit sun & sunset shade
  • Cockpit cover, hard-top w/ hatches and lights
  • Cockpit drink holders, 4
  • Cockpit ice maker
  • Cockpit seating, 6+
  • Cockpit sink
  • Cockpit table
  • Powered engine hatches
  • Rotating transom seats with tables
  • Transom entry doors for boarding

Helm

  • AIS receiving
  • AIS transmitting
  • Autopilot
  • Backup camera
  • Color engine display, 7"
  • Digital fuel flow data
  • Electronic shift and throttle control, twin-lever
  • 22" Garmin navigation system w/ GPS and sonar, additional 7" display
  • Garmin radar, Fantom 24x
  • Helm drink holder
  • Helm seat, double
  • Sliding helm door
  • USB charging ports
  • Windshield wipers, 3
  • Wireless phone charger

Galley

  • Butcher block
  • Galley cabinets, 2
  • Galley drawers, 6
  • Microwave
  • Offset galley for clear walkway
  • Oven, propane
  • Pantry/storage, in-floor
  • Refrigerator/freezer, 2
  • Sink with hot and cold water, double-basin, with pull-out rinse faucet
  • Stove top, propane
  • Wine/water cooler

Mechanical & Electrical

  • AC electrical panel
  • Batteries
  • Battery charger
  • DC electrical panel
  • Generator, diesel
  • Inverter
  • Macerator discharge
  • Smart Plug Inlet and 50amp Shorepower Cord
  • Solar panels, 2x175w with controller
  • Underwater lights

Safety

  • Carbon monoxide detectors
  • Courtesy lights
  • Electric horn
  • Illuminated compass
  • Navigation lights
  • ReFlex high density closed cell foam decking
  • Safety kit: fenders, lines, flares, fire ext, first aid kit, life jackets, boat hook
  • Spotlight with remote
  • Swim platform rails
  • VHF radio, DSC capable
  • Window defrosters

Construction

  • Bonded electrical system
  • Foam-filled fiberglass stringer grid system
  • Premium hull color, Midnight Blue
  • Seawater strainer(s)
  • Self bailing cockpit
  • Stainless steel cleats rails, hardware
  • Teak interior
  • Vinylester barrier coat

Options (visit Build-A-Boat for current pricing)

  • Forward sunshade (R-43)
  • Dynamic Positioning (R-43)
  • Garmin GXM Weather Antenna (R-43)
  • Gyroscope mount and pre-rigging (R-43)
  • Gyroscope stabilization (R-43)
  • Bottom paint and propspeed (R-43)
  • Diesel heating, forced air furnace, two units (R-43)
  • Dinghy/motor package w/ Garmin ECHOMAP UHD 65 cv, transducer, chartplotter, winch assembly, safety kit and lines (R-43)
  • Factory Delivery Experience (R-43)
  • Sionyx pan and tilt thermal camera (R-43)
  • Volvo Five Year Extended Coverage Special Offer (IPS per pair)
  • Hull color upgrade
Options, freight & taxes extra. Prices, specifi cations, equipment, and options maychange without notice. Information on this sheetshould not be used for navigation.
June 5, 2025
Model Page
